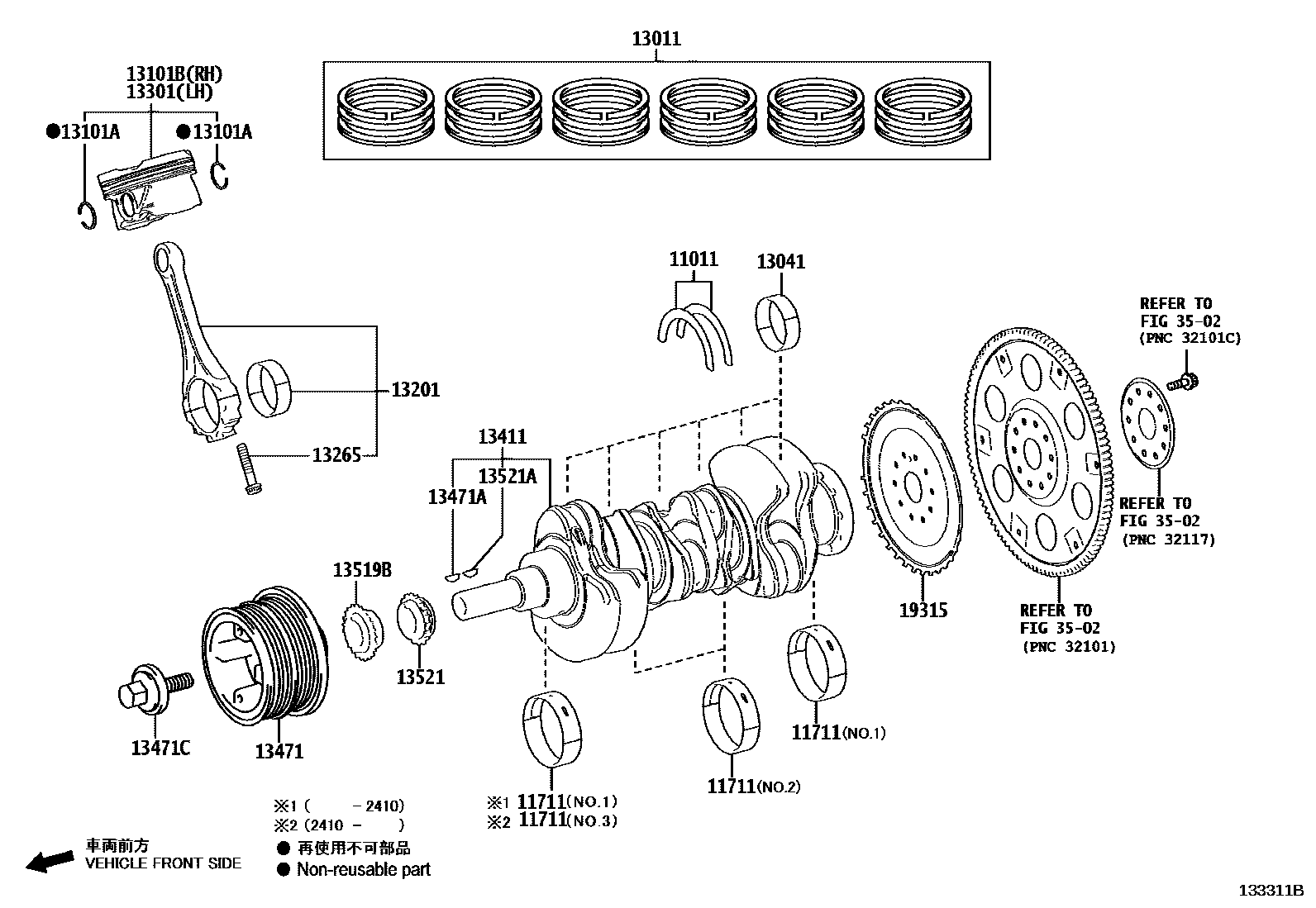

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11711BEARING, CRANKSHAFT
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK UPPER 1 LOWER 2,NO.2,REFER R/M
MARK UPPER 2 LOWER 3,NO.2,REFER R/M
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
MARK UPPER 1 LOWER 1,NO.3,REFER R/M
MARK UPPER 2 LOWER 2,NO.3,REFER R/M
MARK UPPER 3 LOWER 3,NO.3,REFER R/M
MARK UPPER 4 LOWER 4,NO.3,REFER R/M
MARK UPPER 5 LOWER 5,NO.3,REFER R/M
MARK UPPER 1 LOWER 2,NO.3,REFER R/M
MARK UPPER 2 LOWER 3,NO.3,REFER R/M
MARK UPPER 3 LOWER 4,NO.3,REFER R/M
MARK UPPER 4 LOWER 5,NO.3,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK UPPER 1 LOWER 2,NO.1,REFER R/M
MARK UPPER 2 LOWER 3,NO.1,REFER R/M
MARK UPPER 3 LOWER 4,NO.1,REFER R/M
MARK UPPER 4 LOWER 5,NO.1,REFER R/M
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
13101BPISTON SUB-ASSY, W/PIN, RH
STD
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD
13411CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519BSPROCKET, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
18 parts on this diagram · 2 diagrams in section
