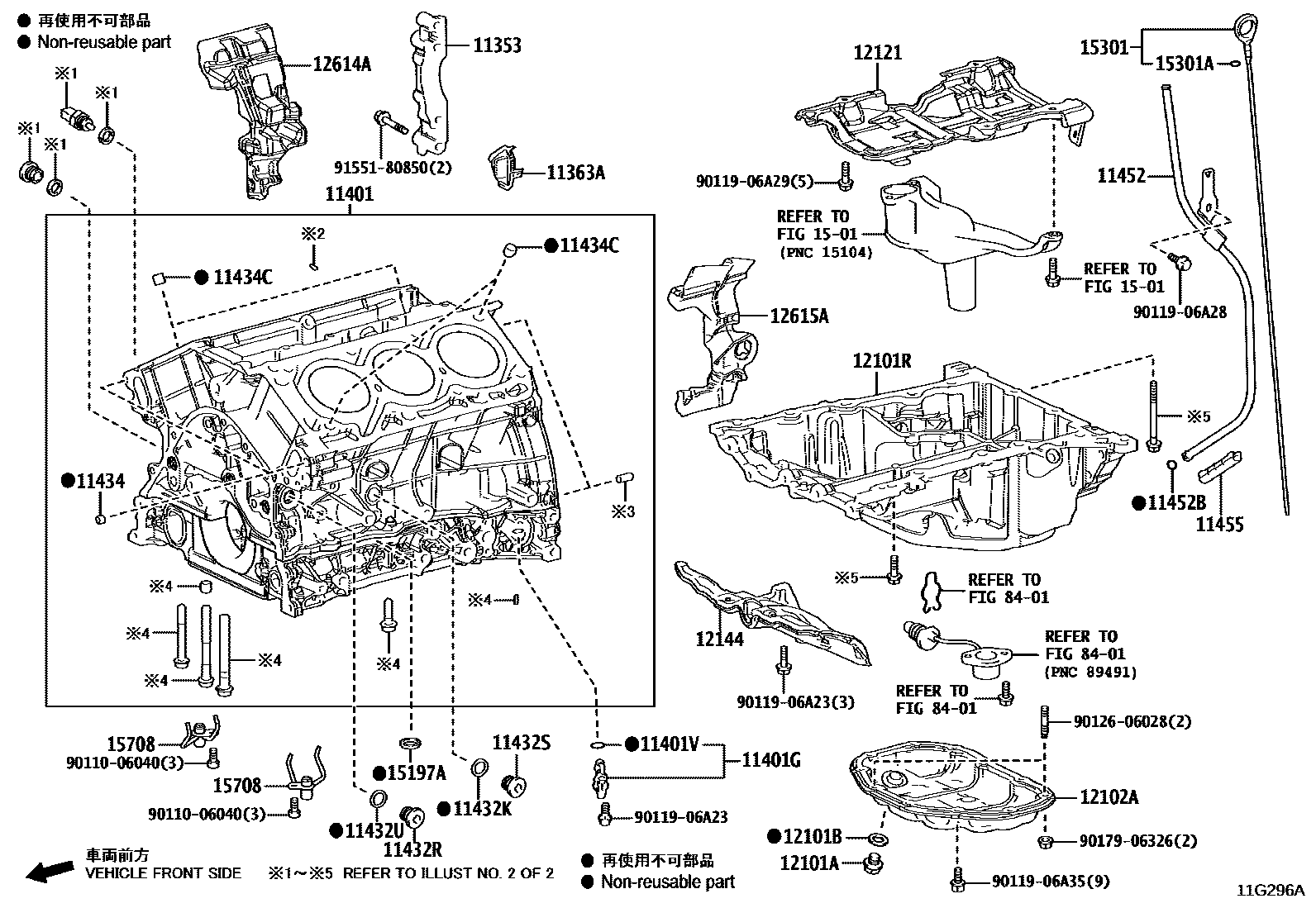

CYLINDER BLOCK
11353STAY, FLYWHEEL HOUSING SIDE
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
11401VO-RING, CRANK POSITION SENSOR
11432KGASKET, W/HEAD STRAIGHT SCREW PLUG
11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=14
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11455PROTECTOR, OIL LEVEL GAUGE GUIDE
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101RPAN SUB-ASSY, OIL, NO.1
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
12144SILENCER, OIL PAN COVER
12614ACOVER, ENGINE, NO.4
12615ACOVER, ENGINE, NO.5
1501ENGINE OIL PUMP
15197AGASKET, OIL PUMP
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15708NOZZLE SUB-ASSY, OIL, NO.1
8401SWITCH & RELAY & COMPUTER
9011006040
main90110-06040
9011906A23
main90119-06A23
9011906A28
main90119-06A28
9011906A29
main90119-06A29
9011906A35
main90119-06A35
9012606028
main90126-06028
9017906326
main90179-06326
9155180850
main91551-80850
36 parts on this diagram · 2 diagrams in section
