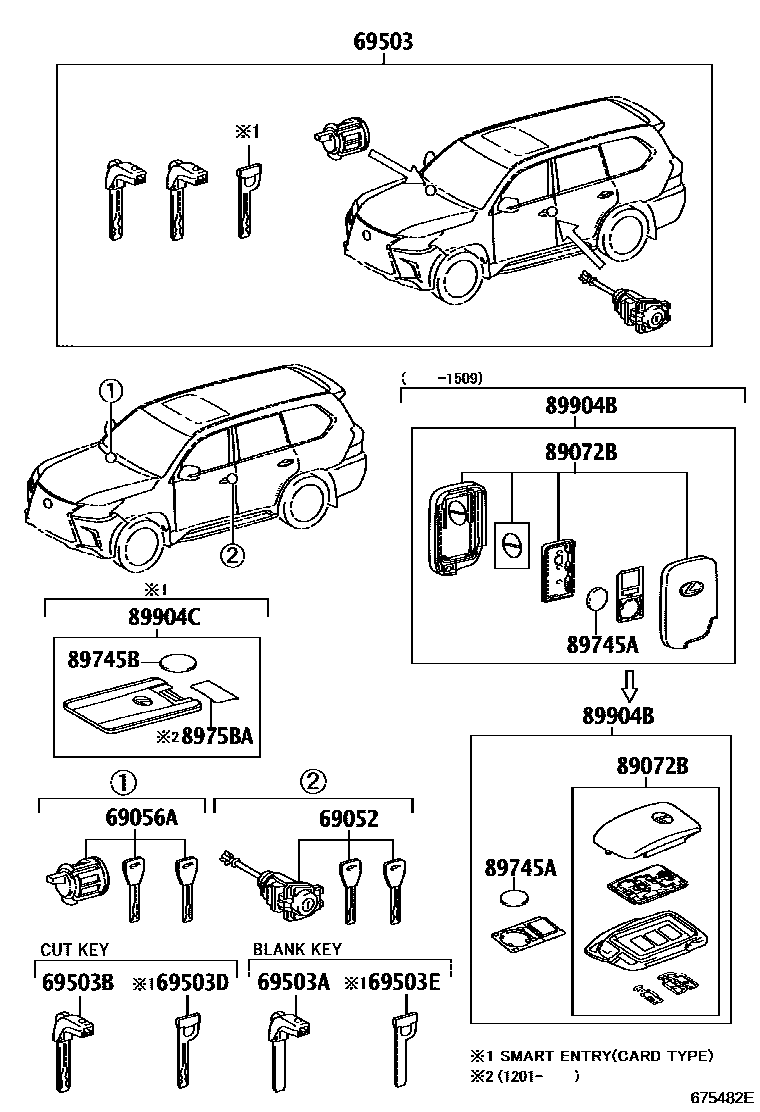

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-60300i200711-200806

main69052-60301i200807-200811

main69052-60302i201201-201509

main69052-60400i201509

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160i201509

69503CYLINDER SET, LOCK

main69005-60G70i201509

main69005-6C280supersedes 69005-6C322i200711-200806

SMART ENTRY(CARD TYPE)

main69005-6C281supersedes 69005-6C322i200807-200811

SMART ENTRY(CARD TYPE)

main69005-6C282supersedes 69005-6C322i201201-201509

SMART ENTRY(CARD TYPE)

69503AKEY, BLANK

main69515-30380i201509

MASTER KEY,W(*68)

main69515-50260i200711-201201

BLANK KEY

69503BKEY, CUT

main69515-30370×2i201509

MASTER KEY,W(*68)

main69515-50240×2i200711-201201

MASTER KEY

69503DKEY, CUT(CARD KEY)

main69515-30330i201509

MASTER KEY

main69515-50220i200711-200907

MASTER KEY,SMART ENTRY(CARD TYPE)

69503EKEY, BLANK(CARD KEY)

main69515-30350i201509

MASTER KEY

main69515-50270i200711-200907

BLANK KEY,SMART ENTRY(CARD TYPE)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-48550×2i201908-202008

main89072-48F90×2i202008

main89072-60700×2supersedes 89072-60840i201008-201201

main89072-78220×2i201509-201908

89745ABATTERY, TRANSMITTER

main89745-45010i201509-201908

CR2032

main89745-50020i201908

CR2032

main89745-52020i201201-201509

CR1632

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030i201509

CR2412

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-50020i201509-201908

main8975B-50030i201908

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-48C30×2i201908-202008

main89904-48V80×2i202008

main89904-60061×2supersedes 89904-60051i201008-201109

main89904-60A00×2i201201-201509

main89904-78470×2i201509-201908

main89904-60240supersedes 89904-60230i200711-200805

TAILGATE DOOR EASY CLOSER-WITH; TAILGATE DOOR EASY CLOSER-WITH&SMART ENTRY(CARD TYPE)

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-48Q90i201908-202008

main89904-48X70i202008

main89904-53511i201509-201808

main89904-53512i201809-201908

main89904-50480i200805-201008

TAILGATE DOOR EASY CLOSER-WITH&SMART ENTRY(CARD TYPE)

main89904-50641i200711-200804

SMART ENTRY(CARD TYPE); TAILGATE DOOR EASY CLOSER-WITH&SMART ENTRY(CARD TYPE)

13 parts on this diagram · 1 diagram in section
