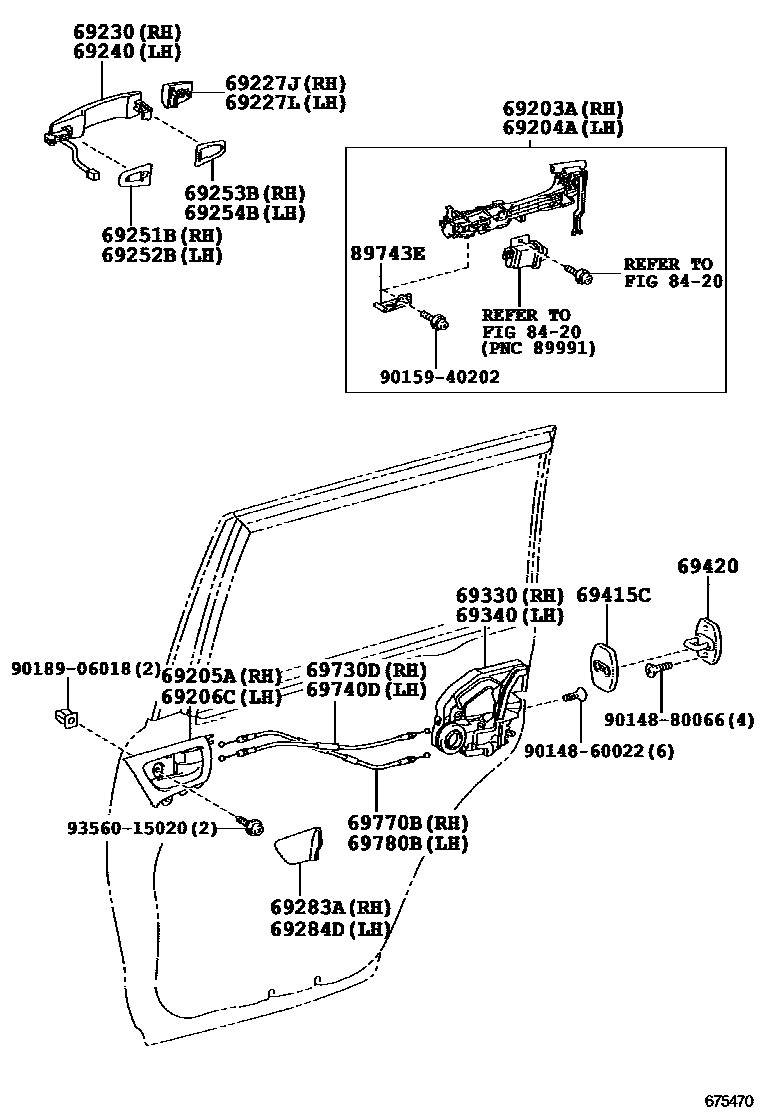

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-60020iURJ201201509

main69203-60060iURJ201200711-201509

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-60020iURJ201201509

main69204-60060iURJ201200711-201509

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main67607-60020-A0iURJ201200712-201201

IVORY,TRIM0#

sub67607-60020

main67607-60020-A1iURJ201201201-201509

IVORY,TRIM0#

sub67607-60020

main67607-60020-B0iURJ201200712-201008

MD.GRAY,TRIM1#

sub67607-60020

main67607-60020-C0iURJ201201008-201201

BLACK,TRIM2#

sub67607-60020

main67607-60020-C0iURJ201201201-201509

BLACK,TRIM2#,4#,5#

sub67607-60020

main67607-60040-C0iURJ201201509-201904

BLACK,TRIM06,2#,3#,4#

sub67607-60041

main67607-60040-E0iURJ201201509-201904

ORCHID BROWN,TRIM02

sub67607-60041

main67607-60041-C0iURJ201201905

BLACK,TRIM06,2#,3#,4#,5#

main67607-60041-E0iURJ201201905

ORCHID BROWN,TRIM02

main69270-60010-A0iURJ201200711-200712

IVORY,TRIM0#

sub67607-60020

main69270-60010-B0iURJ201200711-200712

MD.GRAY,TRIM1#

sub67607-60020

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main67608-60020-A0iURJ201200712-201201

IVORY,TRIM0#

sub67608-60020

main67608-60020-A1iURJ201201201-201509

IVORY,TRIM0#

sub67608-60020

main67608-60020-B0iURJ201200712-201008

MD.GRAY,TRIM1#

sub67608-60020

main67608-60020-C0iURJ201201201-201509

BLACK,TRIM2#,4#,5#

sub67608-60020

main67608-60020-C0iURJ201201008-201201

BLACK,TRIM2#

sub67608-60020

main67608-60040-C0iURJ201201509-201904

BLACK,TRIM06,2#,3#,4#

sub67608-60041

main67608-60040-E0iURJ201201509-201904

ORCHID BROWN,TRIM02

sub67608-60041

main67608-60041-C0iURJ201201905

BLACK,TRIM06,2#,3#,4#,5#

main67608-60041-E0iURJ201201905

ORCHID BROWN,TRIM02

main69280-60010-A0iURJ201200711-200712

IVORY,TRIM0#

sub67608-60020

main69280-60010-B0iURJ201200711-200712

MD.GRAY,TRIM1#

sub67608-60020

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-60070iURJ201200711-201509

*CR

main69250-60080-A0iURJ201201509-201708

WHITE PEARL CS.,077

main69250-60080-A1iURJ201201708-202008

SONIC QUARTZ,085

main69250-60080-B0iURJ201201509-202008

MERCURY GRAY MC.,1H9

main69250-60080-B1iURJ201201509-202008

SONIC TITANIUM,1J7

main69250-60080-C0iURJ201201509-202008

BLACK,202

main69250-60080-C1iURJ201201509-202008

STARLIGHT BLACK GF.,217

main69250-60080-E0iURJ201201509-201912

SLEEK ECRU ME.,4U7

main69250-60080-J0iURJ201201509-202008

DEEP BLUE MC.,8X5

main69250-60130-A0iURJ201202008

SONIC QUARTZ,085

main69250-60130-B1iURJ201202008

SONIC TITANIUM,1J7

main69250-60130-C0iURJ201202008

BLACK,202

main69250-60130-C1iURJ201202008

STARLIGHT BLACK GF.,217

main69250-60130-G0iURJ201202008

TERRANE KHAKI M.M.,6X4

main69250-60130-J0iURJ201202008-202101

DEEP BLUE MC.,8X5

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-60040iURJ201200711-201509

*CR

main69250-60080-A0iURJ201201509-201708

WHITE PEARL CS.,077

main69250-60080-A1iURJ201201708-202008

SONIC QUARTZ,085

main69250-60080-B0iURJ201201509-202008

MERCURY GRAY MC.,1H9

main69250-60080-B1iURJ201201509-202008

SONIC TITANIUM,1J7

main69250-60080-C0iURJ201201509-202008

BLACK,202

main69250-60080-C1iURJ201201509-202008

STARLIGHT BLACK GF.,217

main69250-60080-E0iURJ201201509-201912

SLEEK ECRU ME.,4U7

main69250-60080-J0iURJ201201509-202008

DEEP BLUE MC.,8X5

main69250-60130-A0iURJ201202008

SONIC QUARTZ,085

main69250-60130-B1iURJ201202008

SONIC TITANIUM,1J7

main69250-60130-C0iURJ201202008

BLACK,202

main69250-60130-C1iURJ201202008

STARLIGHT BLACK GF.,217

main69250-60130-G0iURJ201202008

TERRANE KHAKI M.M.,6X4

main69250-60130-J0iURJ201202008-202101

DEEP BLUE MC.,8X5

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-60110iURJ201200711-201509

PLATED

main69210-60180-A0iURJ201202008

SONIC QUARTZ,085

main69210-60180-B1iURJ201202008

SONIC TITANIUM,1J7

main69210-60180-C0iURJ201202008

BLACK,202

main69210-60180-C1iURJ201202008

STARLIGHT BLACK GF.,217

main69210-60180-G0iURJ201202008

TERRANE KHAKI M.M.,6X4

main69210-60180-J0iURJ201202008-202101

DEEP BLUE MC.,8X5

main69210-60280-A0iURJ201201509-201708

WHITE PEARL CS.,077

main69210-60280-A1iURJ201201708-202008

SONIC QUARTZ,085

main69210-60280-B0iURJ201201509-202008

MERCURY GRAY MC.,1H9

main69210-60280-B1iURJ201201509-202008

SONIC TITANIUM,1J7

main69210-60280-C0iURJ201201509-202008

BLACK,202

main69210-60280-C1iURJ201201509-202008

STARLIGHT BLACK GF.,217

main69210-60280-E0iURJ201201509-201912

SLEEK ECRU ME.,4U7

main69210-60280-J0iURJ201201509-202008

DEEP BLUE MC.,8X5

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-60110iURJ201200711-201509

PLATED

main69210-60180-A0iURJ201202008

SONIC QUARTZ,085

main69210-60180-B1iURJ201202008

SONIC TITANIUM,1J7

main69210-60180-C0iURJ201202008

BLACK,202

main69210-60180-C1iURJ201202008

STARLIGHT BLACK GF.,217

main69210-60180-G0iURJ201202008

TERRANE KHAKI M.M.,6X4

main69210-60180-J0iURJ201202008-202101

DEEP BLUE MC.,8X5

main69210-60280-A0iURJ201201509-201708

WHITE PEARL CS.,077

main69210-60280-A1iURJ201201708-202008

SONIC QUARTZ,085

main69210-60280-B0iURJ201201509-202008

MERCURY GRAY MC.,1H9

main69210-60280-B1iURJ201201509-202008

SONIC TITANIUM,1J7

main69210-60280-C0iURJ201201509-202008

BLACK,202

main69210-60280-C1iURJ201201509-202008

STARLIGHT BLACK GF.,217

main69210-60280-E0iURJ201201509-201912

SLEEK ECRU ME.,4U7

main69210-60280-J0iURJ201201509-202008

DEEP BLUE MC.,8X5

69251BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 RH

main69241-60030iURJ201201509

main69241-60040iURJ201200711-201509

69252BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 LH

main69241-60030iURJ201201509

main69241-60050iURJ201200711-201509

69253BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 RH

main69242-60040iURJ201201509

main69242-60060iURJ201200711-201509

69254BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH

main69242-60040iURJ201201509

main69242-60070iURJ201200711-201509

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-48010-C0iURJ201201509

BLACK,TRIM06,2#,3#,4#,5#

main69283-48010-E1iURJ201201509

ORCHID BROWN,TRIM02

main69283-60020-A0iURJ201200711-201201

IVORY,TRIM0#

sub69283-60020

main69283-60020-A1iURJ201201201-201509

IVORY,TRIM0#

sub69283-60020

main69283-60020-B0iURJ201200711-201008

MD.GRAY,TRIM1#

sub69283-60020

main69283-60020-C0iURJ201201201-201509

BLACK,TRIM2#,4#,5#

sub69283-60020

main69283-60020-C0iURJ201201008-201201

BLACK,TRIM2#

sub69283-60020

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-48010-C0iURJ201201509

BLACK,TRIM06,2#,3#,4#,5#

main69284-48010-E1iURJ201201509

ORCHID BROWN,TRIM02

main69284-60020-A0iURJ201200711-201201

IVORY,TRIM0#

sub69284-60020

main69284-60020-A1iURJ201201201-201509

IVORY,TRIM0#

sub69284-60020

main69284-60020-B0iURJ201200711-201008

MD.GRAY,TRIM1#

sub69284-60020

main69284-60020-C0iURJ201201201-201509

BLACK,TRIM2#,4#,5#

sub69284-60020

main69284-60020-C0iURJ201201008-201201

BLACK,TRIM2#

sub69284-60020

69330LOCK ASSY, REAR DOOR, RH

main69050-60100iURJ201200711-201509

main69050-60120iURJ201201509

69340LOCK ASSY, REAR DOOR, LH

main69060-60100iURJ201200711-201509

main69060-60120iURJ201201509

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-33010iURJ201200711-201207

main69415-60020iURJ201201208-201509

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-30060iURJ201200711-201509

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-60020iURJ201200711-201509

main69730-60060iURJ201201509

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-60020iURJ201200711-201509

main69730-60060iURJ201201509

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-60050iURJ201200711-201509

main69770-60090iURJ201201509-201710

main69770-60091iURJ201201710

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-60050iURJ201200711-201509

main69770-60090iURJ201201509-201710

main69770-60091iURJ201201710

8420

89743EBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-53010iURJ201200711-201509

RH

main89743-53020iURJ201200711-201509

LH

9014860022

main90148-60022

9014880066

main90148-80066

9015940202

main90159-40202

9018906018

main90189-06018

9356015020

main93560-15020

29 parts on this diagram · 2 diagrams in section
