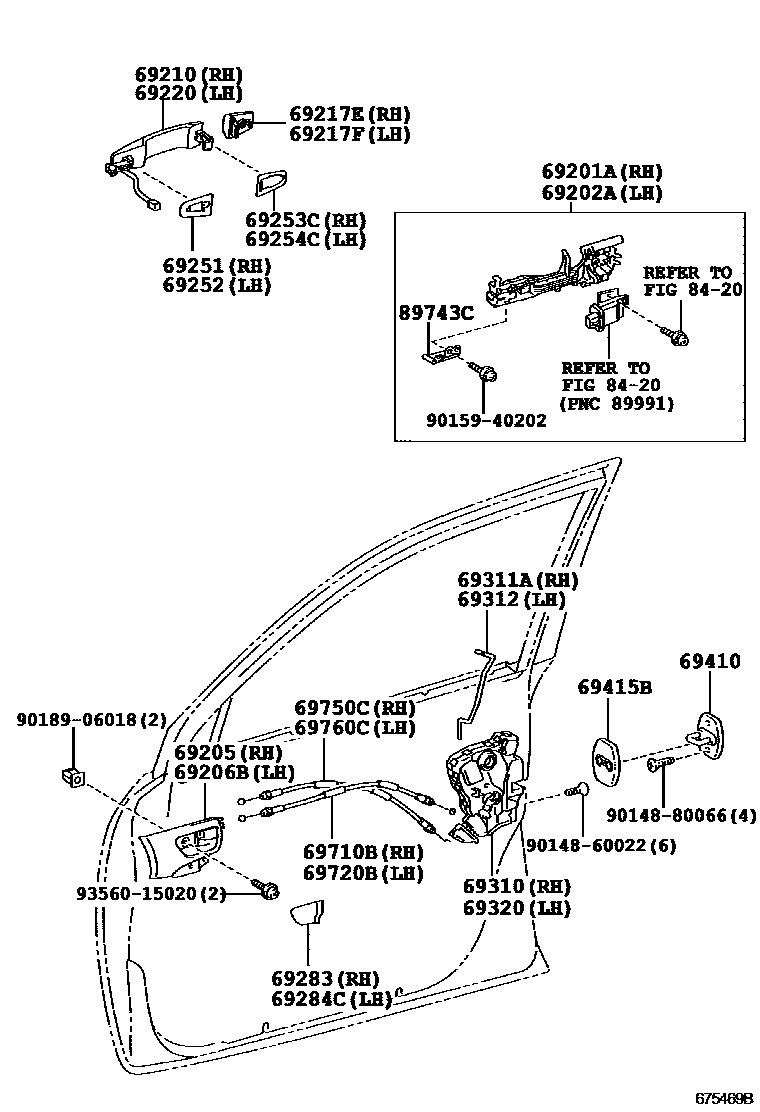

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM06,2#,3#,4#,5#
ORCHID BROWN,TRIM02
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM06,2#,3#,4#,5#
ORCHID BROWN,TRIM02
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
SONIC QUARTZ,085
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
DEEP BLUE MC.,8X5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
*CR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
SONIC QUARTZ,085
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
DEEP BLUE MC.,8X5
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM06,2#,3#,4#,5#
ORCHID BROWN,TRIM02
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM06,2#,3#,4#,5#
ORCHID BROWN,TRIM02
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9018906018
main90189-06018
9356015020
main93560-15020
31 parts on this diagram · 2 diagrams in section
