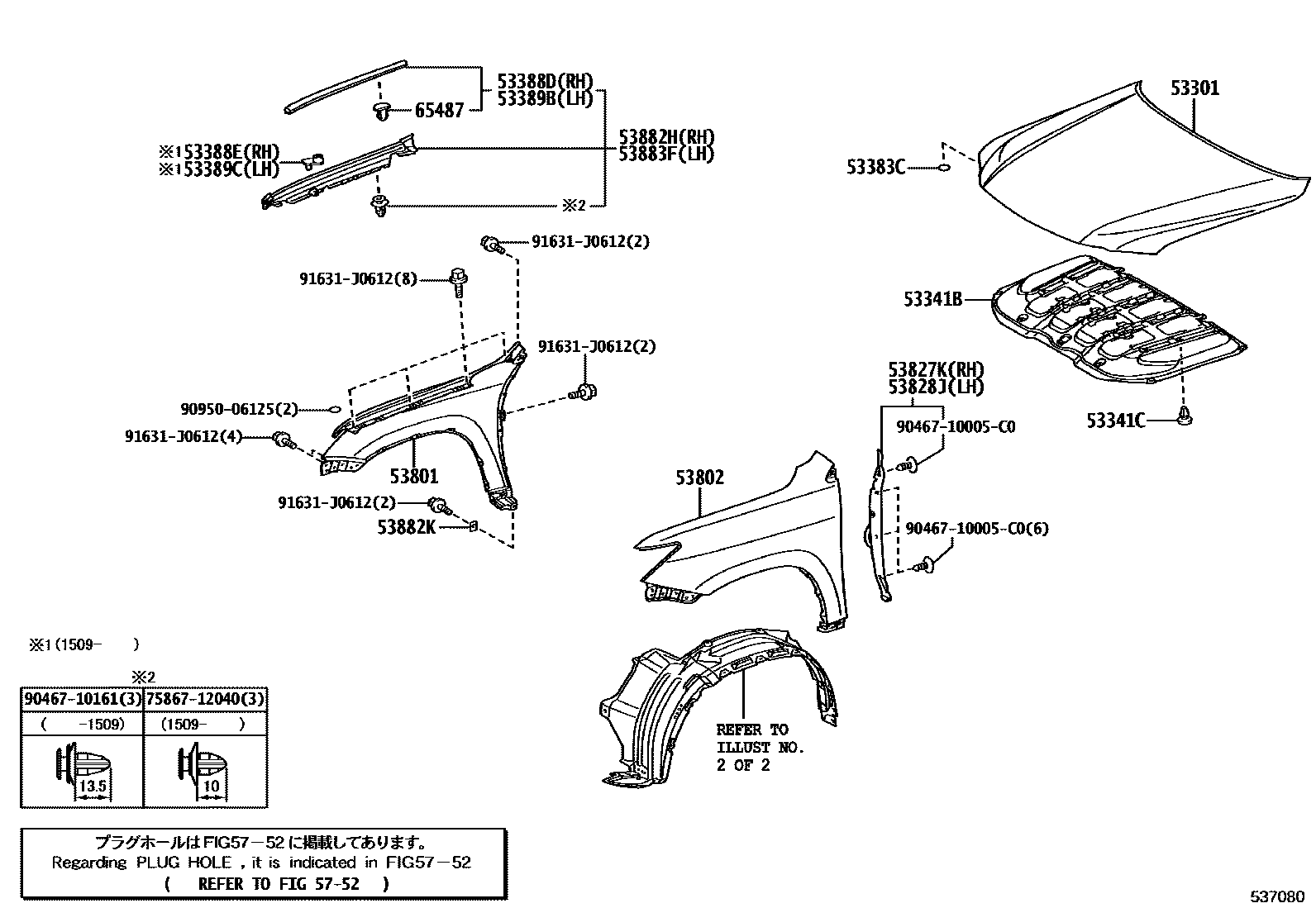

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-60600iURJ201200711-201112

main53301-60601iURJ201201205-201509

main53301-60700iURJ201201509

53341BINSULATOR, HOOD

main53341-60350iURJ201200711-201201

main53341-60410iURJ201201509

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×12iURJ201200711-201201

53383CSEAL, HOOD TO COWL TOP

main53397-60010×2iURJ201200711-201201

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-60030iURJ201200711-201201

main53388-60070iURJ201201509

53388ESEAL, HOOD TO FRONT FENDER, RH

main53388-60080iURJ201201509

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-60070iURJ201201509

main53389-60030iURJ201201201-201509

53389CSEAL, HOOD TO FRONT FENDER, LH

main53389-60090iURJ201201509

53801FENDER SUB-ASSY, FRONT RH

main53801-60C20iURJ201200711-201201

main53801-60D80iURJ201201509

53802FENDER SUB-ASSY, FRONT LH

main53802-60B80iURJ201200711-201201

main53802-60D70iURJ201201509

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60020iURJ201200711-201201

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60040iURJ201201509

53882HSEAL, FRONT FENDER MAIN, RH

main53805-60030iURJ201200711-201201

main53805-60100iURJ201201509

53882KSEAL, FRONT FENDER

main53882-16030×2iURJ201200711-201201

53883FSEAL, FRONT FENDER MAIN, LH

main53806-60030iURJ201200711-201201

main53806-60090iURJ201201509

5752HOLE PLUG

→ Go to FIG 57-52

65487CLIP, CORNER PROTECTOR

main65487-60010×9iURJ201200711-201201

7586712040MOULDING, FRONT PANEL

main75867-12040

9046710005C0

main90467-10005C0

9046710161

main90467-10161

9095006125

main90950-06125

91631J0612

main91631-J0612

22 parts on this diagram · 2 diagrams in section
