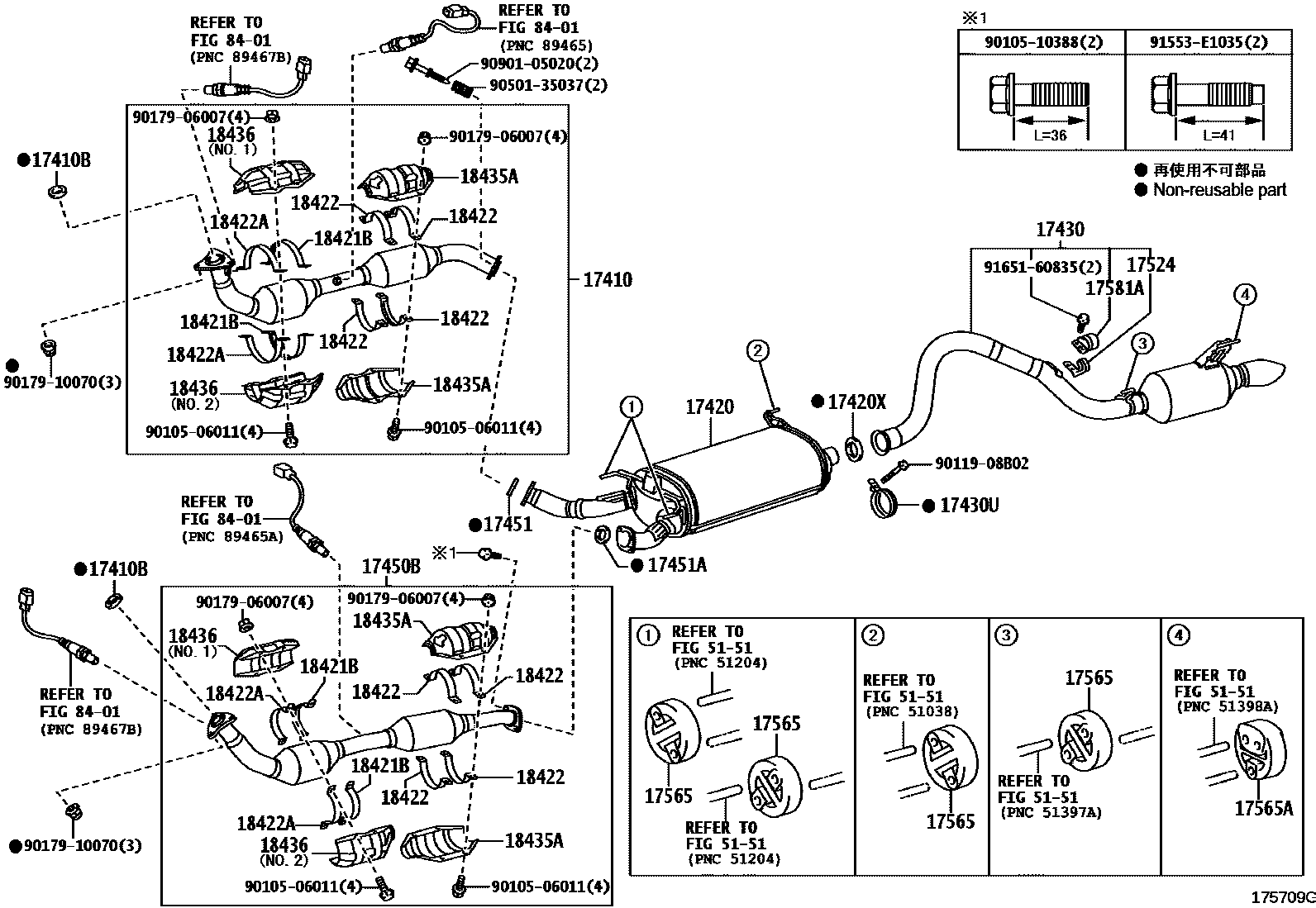

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430UCLAMP NO.1, EXHAUST TAILPIPE (FOR REAR)
17450BPIPE ASSY, EXHAUST, FRONT NO.2
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17524PROTECTOR, EXHAUST PIPE, UPPER NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17581ADAMPER, EXHAUST PIPE
18421BSTAY, CONVERTER PROTECTOR, NO.2
18422STAY, CONVERTER PROTECTOR, NO.2
18422ASTAY, CONVERTER PROTECTOR, NO.3
18435APROTECTOR, MONOLITHIC CONVERTER
18436PROTECTOR, MONOLITHIC CONVERTER, NO.1
NO.1
NO.2
5151FRAME
8401SWITCH & RELAY & COMPUTER
9010506011
main90105-06011
9010510388
main90105-10388
9011908B02
main90119-08B02
9017906007
main90179-06007
9017910070
main90179-10070
9050135037
main90501-35037
9090105020
main90901-05020
91553E1035
main91553-E1035
9165160835
main91651-60835
29 parts on this diagram · 1 diagram in section
