WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

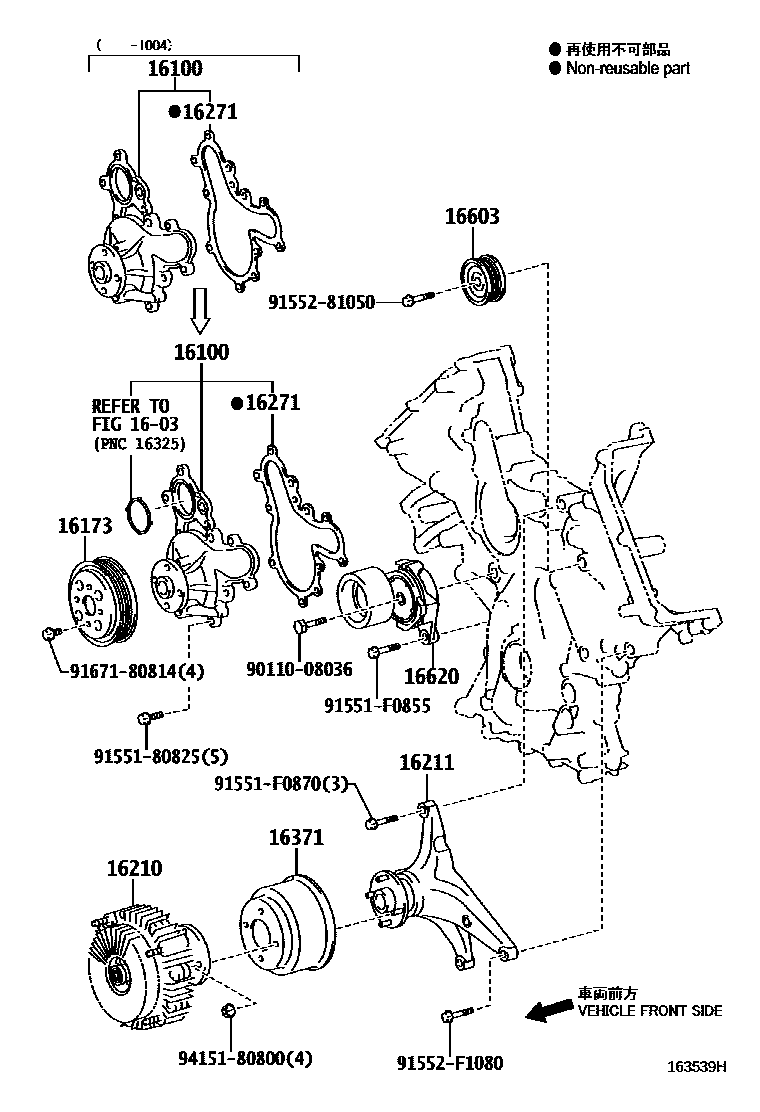

16100PUMP ASSY, ENGINE WATER

main16100-09490i3URFE..URJ201200901-201004

(L),*145

main16100-09491i3URFE..URJ201201004-201012

(L),*145

main16100-39495i3URFE..URJ201200711-200801

main16100-39496i3URFE..URJ201201004-201012

(J),*145

16173PULLEY, WATER PUMP

main16173-38030i3URFE..URJ201200711-201201

*119

main16173-38031i3URFE..URJ201202005

16210COUPLING ASSY, FLUID

main16210-38070i3URFE..URJ201200901-201012

*145

main16210-38071i3URFE..URJ201201411-201509

16211BRACKET, FLUID COUPLING

main16380-0S010i3URFE..URJ201200901-201012

(L),*145

main16380-38010i3URFE..URJ201201201-201509

16271GASKET, WATER PUMP

main16271-38020i3URFE..URJ201200901-201012

*145

16371PULLEY, FAN

main16371-38010i3URFE..URJ201200901-201012

*145

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-38010i3URFE..URJ201200901-201012

*145

main16603-38011i3URFE..URJ201201212-201509

main16603-38012i3URFE..URJ201201903

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0S010i3URFE..URJ201200901-201012

*145

main16620-0S011i3URFE..URJ201201209-201509

main16620-0S012i3URFE..URJ201201707

9011008036

main90110-08036

9155180825

main91551-80825

91551F0855

main91551-F0855

91551F0870

main91551-F0870

9155281050

main91552-81050

91552F1080

main91552-F1080

9167180814

main91671-80814

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
