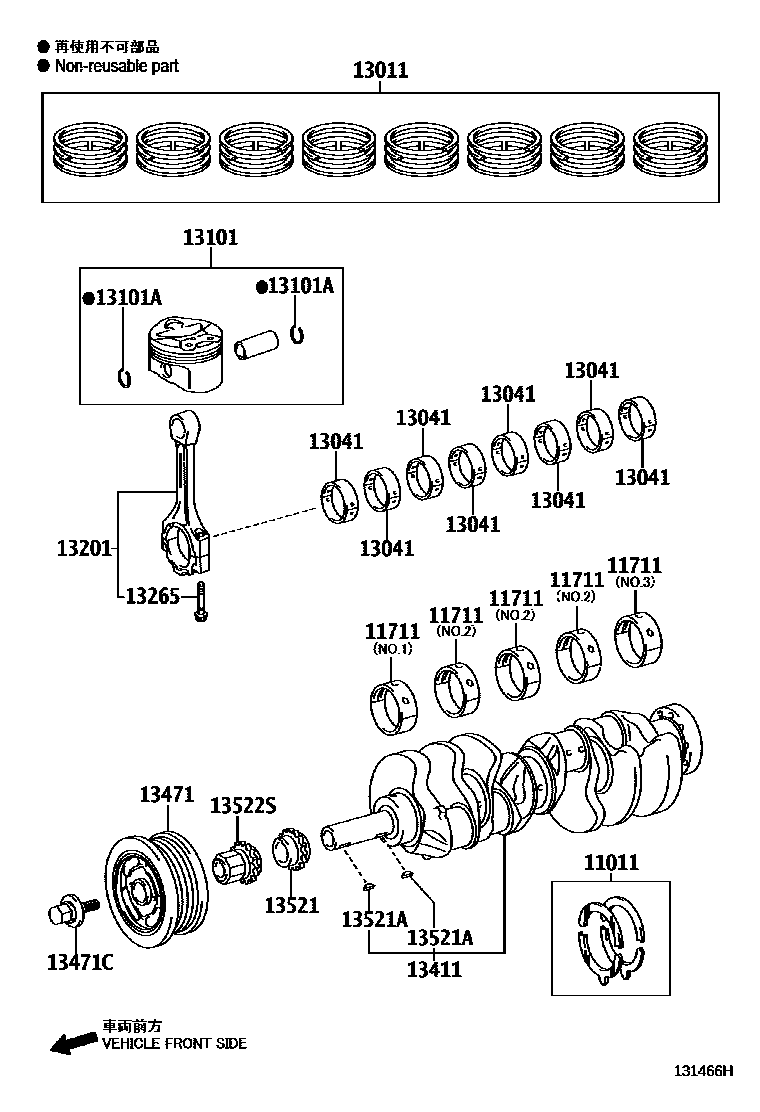

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,(L),*145
STD,*119
STD,*119
11711BEARING, CRANKSHAFT
MARKUPPER3LOWER4,NO.2,REFER R/M
MARKUPPER4LOWER4,NO.2,REFER R/M
MARKUPPER4LOWER5,NO.2,REFER R/M
MARKUPPER5LOWER5,NO.2,REFER R/M
MARKUPPER5LOEWR6,NO.2,REFER R/M,*119
MARKUPPER6LOWER6,NO.2,REFER R/M,*119
MARKUPPER6LOWER7,NO.2,REFER R/M,*119
MARKUPPER7LOWER7,NO.2,REFER R/M
MARKUPPER7LOWER8,NO.2,REFER R/M,*119
MARKUPPER8LOWER8,NO.2,REFER R/M
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
MARK UPPER 5 LOWER 5,NO.2,REFER R/M
MARK UPPER 5 LOWER 6,NO.2,REFER R/M
MARK UPPER 6 LOWER 6,NO.2,REFER R/M
MARK UPPER 6 LOWER 7,NO.2,REFER R/M
MARK UPPER 7 LOWER 7,NO.2,REFER R/M
MARK UPPER 7 LOWER 8,NO.2,REFER R/M
MARK UPPER 8 LOWER 8,NO.2,REFER R/M
MARKUPPER4LOWER5,NO.3,REFER R/M,*119
MARKUPPER5LOWER5,NO.1,3 *RRM
MARKUPPER5LOWER6,NO.1,3 *RRM,*145
MARKUPPER6LOWER6,NO.1,3 *RRM
MARKUPPER6LOWER7,NO.1,3 *RRM
MARKUPPER7LOWER7,NO.3,REFER R/M,*119
MARKUPPER7LOWER8,NO.3,REFER R/M,*119
MARKUPPER8LOWER8,NO.3,REFER R/M,*119
MARKUPPWE8LOWER9,NO.3,REFER R/M,*119
MARKUPPER9LOWER9,NO.1,3 *RRM,*145
MARK UPPER 4 LOWER 5,NO.1,3 *RRM
MARK UPPER 5 LOWER 5,NO.1,3 *RRM
MARK UPPER 5 LOWER 6,NO.1,3 *RRM
MARK UPPER 6 LOWER 6,NO.1,3 *RRM
MARK UPPER 6 LOWER 7,NO.1,3 *RRM
MARK UPPER 7 LOWER 7,NO.1,3 *RRM
MARK UPPER 7 LOWER 8,NO.1,3 *RRM
MARK UPPER 8 LOWER 8,NO.1,3 *RRM
MARK UPPER 8 LOWER 9,NO.1,3 *RRM
MARK UPPER 9 LOWER 9,NO.1,3 *RRM
MARKUPPER4LOWER5,NO.1,REFER R/M,*119
MARKUPPER5LOWER5,NO.1,REFER R/M,*119
MARKUPPER5LOWER6,NO.1,REFER R/M,*119
MARKUPPER6LOWER6,NO.1,REFER R/M,*119
MARKUPPER6LOWER7,NO.1,REFER R/M,*119
MARKUPPER7LOWER7,NO.1,REFER R/M,*119
MARKUPPER7LOWER8,NO.1,REFER R/M,*119
MARKUPPER8LOWER8,NO.1,REFER R/M,*119
MARKUPPER8LOWER9,NO.1,REFER R/M,*119
MARKUPPER9LOWER9,NO.1,REFER R/M,*119
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK6,*145:REFER R/M
MARK7,*119:REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,*145
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
*145
13201ROD SUB-ASSY, CONNECTING
(L),*145
(J),*145
13265BOLT, CONNECTING ROD
*145
13411CRANKSHAFT
(L),*145
(J),*145
13471PULLEY, CRANKSHAFT
*145
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
*145
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
*119
*145
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
*145
13522SSPROCKET, CRANKSHAFT TIMING, LH
*119
*145
