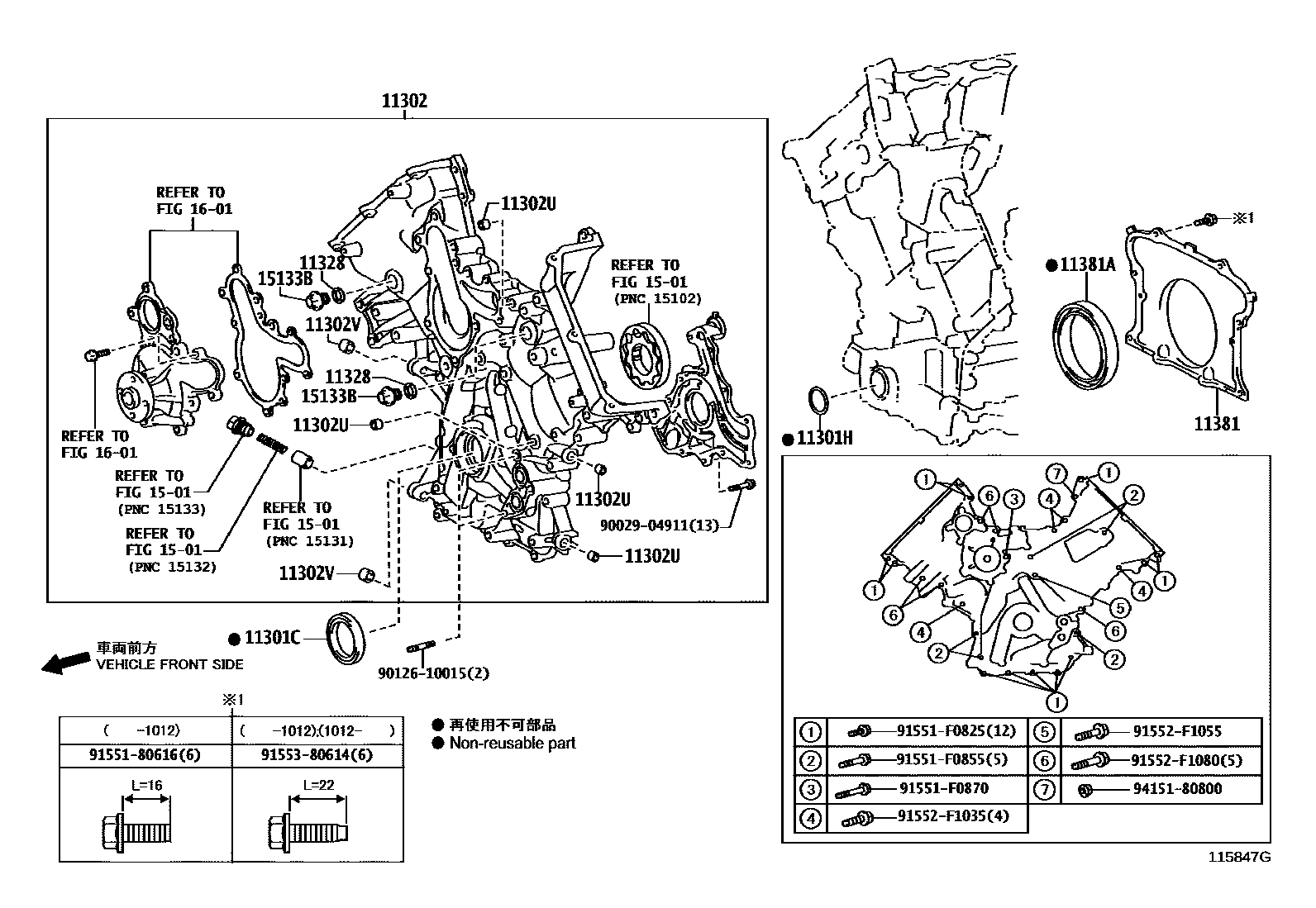

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42036i3URFE..URJ201200901-201012

(J),*145

main90311-A0005i3URFE..URJ201200901-201012

(L),*145

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-40008i3URFE..URJ201201509

main90301-A0033i3URFE..URJ201200901-201012

(L),*145

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0S010i3URFE..URJ201200901-201012

(L),*145

main11310-38060i3URFE..URJ201200901-201012

(J),*145

11302UPIN, RING

main90253-11021×4i3URFE..URJ201200901-201012

*145

11302VPIN, RING, NO.1

main90253-13017×2i3URFE..URJ201200901-201012

*145

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-38030×2i3URFE..URJ201200901-201012

*145

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38020i3URFE..URJ201200901-201012

*145

11381ASEAL, ENGINE REAR OIL

main90311-95012i3URFE..URJ201200901-201012

*145

main90311-95013i3URFE..URJ201200711-201201

*119

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071×2i3URFE..URJ201200901-201012

*145

1601WATER PUMP

→ Go to FIG 16-01

9002904911

main90029-04911

9012610015

main90126-10015

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0855

main91551-F0855

91551F0870

main91551-F0870

91552F1035

main91552-F1035

91552F1055

main91552-F1055

91552F1080

main91552-F1080

9155380614

main91553-80614

9415180800

main94151-80800

22 parts on this diagram · 1 diagram in section
