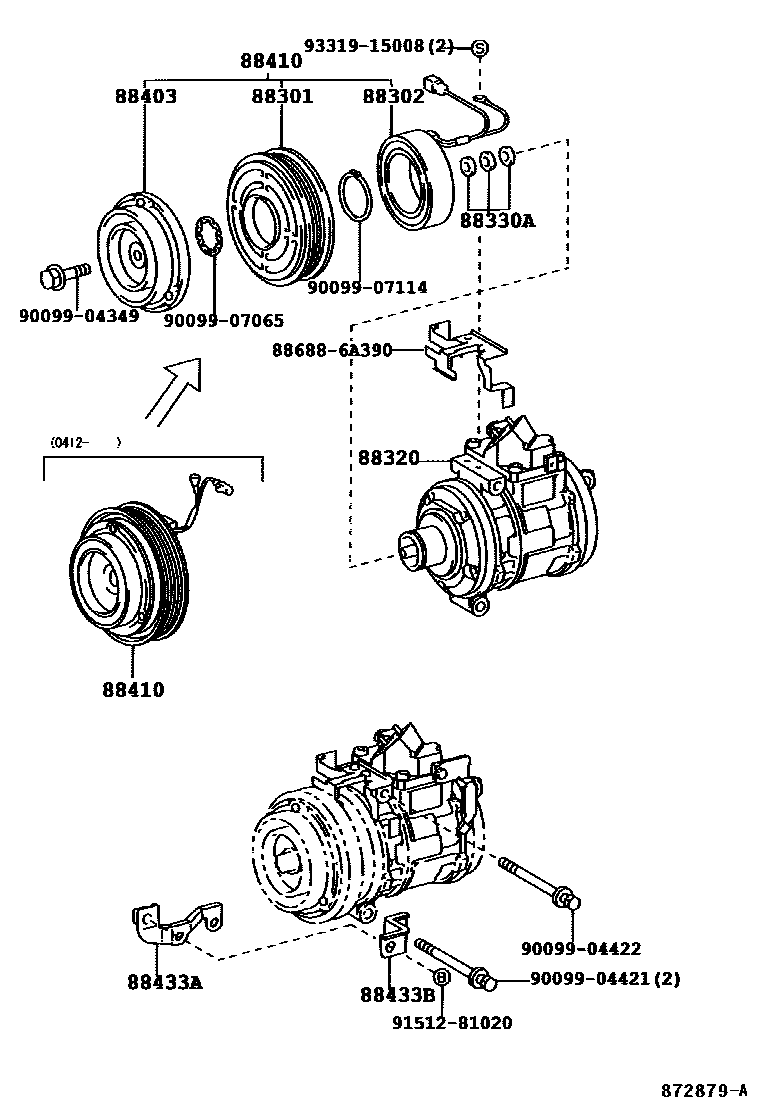

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-60070iUZJ100200208-200502

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-3A030iUZJ100199801-200208

88320COMPRESSOR ASSY, COOLER

main88320-60680iUZJ100199801-200208

main88320-60681iUZJ100200502-200505

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iUZJ100199801-200208

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iUZJ100199801-200208

88410CLUTCH ASSY, MAGNET

main88410-50100iUZJ100199801-200111

main88410-60410iUZJ100200111-200208

88433ASTAY, COMPRESSOR

main88433-60030iUZJ100199801-200208

88433BSTAY, COMPRESSOR

main88433-60040iUZJ100199801-200208

886886A390BRACKET, COOLER DIAPHRAGM

main88688-6A390

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907065

main90099-07065

9009907114

main90099-07114

9151281020

main91512-81020

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section
