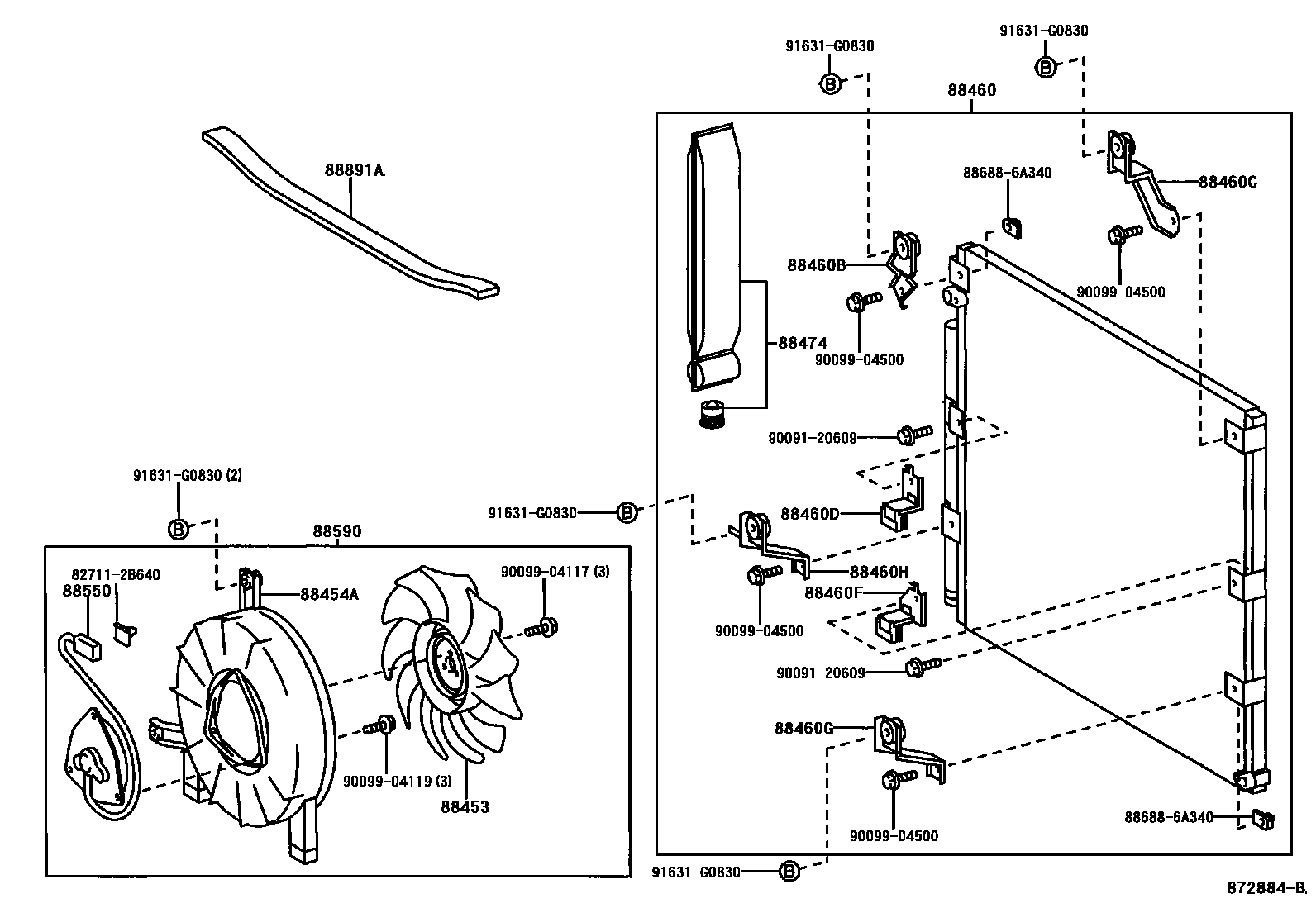

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1CONDENSOR 0003 1FRONT 0004 1FRONT 0005 1FRONT 0006 1REAR 0007 1O-RING 0008 1O-RING

88453FAN, COOLING (FOR CONDENSER)

main88453-60010iUZJ100199801-200208

88454ASHROUD, FAN

main88454-60020iUZJ100199801-200208

88460CONDENSER ASSY, COOLER

main88460-60270iUZJ100199801-199810

main88460-60271iUZJ100199810-200208

main88460-60903iUZJ100200208-200505

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-60770iUZJ100199801-199810

main88688-6A420iUZJ100199810-200208

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-60850iUZJ100199801-199810

main88688-60851iUZJ100199810-200208

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-60790iUZJ100199801-200208

88460FBRACKET, COOLER CONDENSER, NO.4

main88688-6A190iUZJ100200505

88460GBRACKET, COOLER CONDENSER, NO.5

main88688-6A180iUZJ100200208-200505

88460HBRACKET, COOLER CONDENSER, NO.6

main88688-60870iUZJ100199801-200208

88474DRYER, COOLER

main88474-17010iUZJ100200208-200505

main88474-22010iUZJ100199801-199909

main88474-47010iUZJ100199909-200208

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-64080iUZJ100199801-200208

88590BLOWER ASSY, W/SHROUD

main88590-60030iUZJ100199801-200208

88891APACKING A (FOR COOLER)

main88578-60100iUZJ100199801-200208

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

886886A340BRACKET, COOLER DIAPHRAGM

main88688-6A340

9009120609

main90091-20609

9009904117

main90099-04117

9009904119

main90099-04119

9009904500

main90099-04500

91631G0830

main91631-G0830
