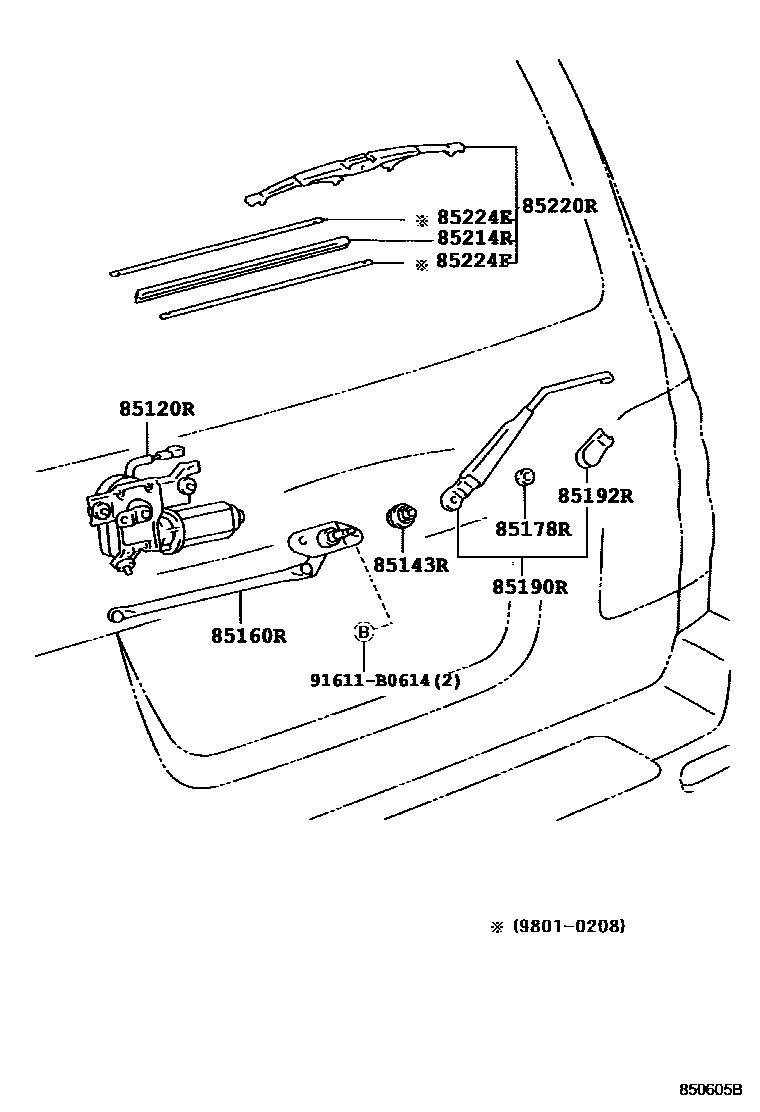

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85080-60170iUZJ100199801-200505

85143RGROMMET, REAR WIPER MOTOR

main85143-60110iUZJ100199801-200505

85160RLINK ASSY, REAR WIPER

main85170-60090iUZJ100199801-200505

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06070iUZJ100199801-200003

sub90179-06159

main90179-06158iUZJ100200003-200505

85190RARM ASSY, REAR WIPER

main85241-60070iUZJ100199801-200505

85192RCOVER, REAR WIPER ARM

main85192-13060iUZJ100199801-200505

85214RRUBBER, REAR WIPER

main85214-10100iUZJ100199801-200505

85220RBLADE ASSY, REAR WIPER

main85242-60050iUZJ100199801-200505

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-10200iUZJ100199801-200208

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-10200iUZJ100199801-200208

91611B0614

main91611-B0614

11 parts on this diagram · 1 diagram in section
