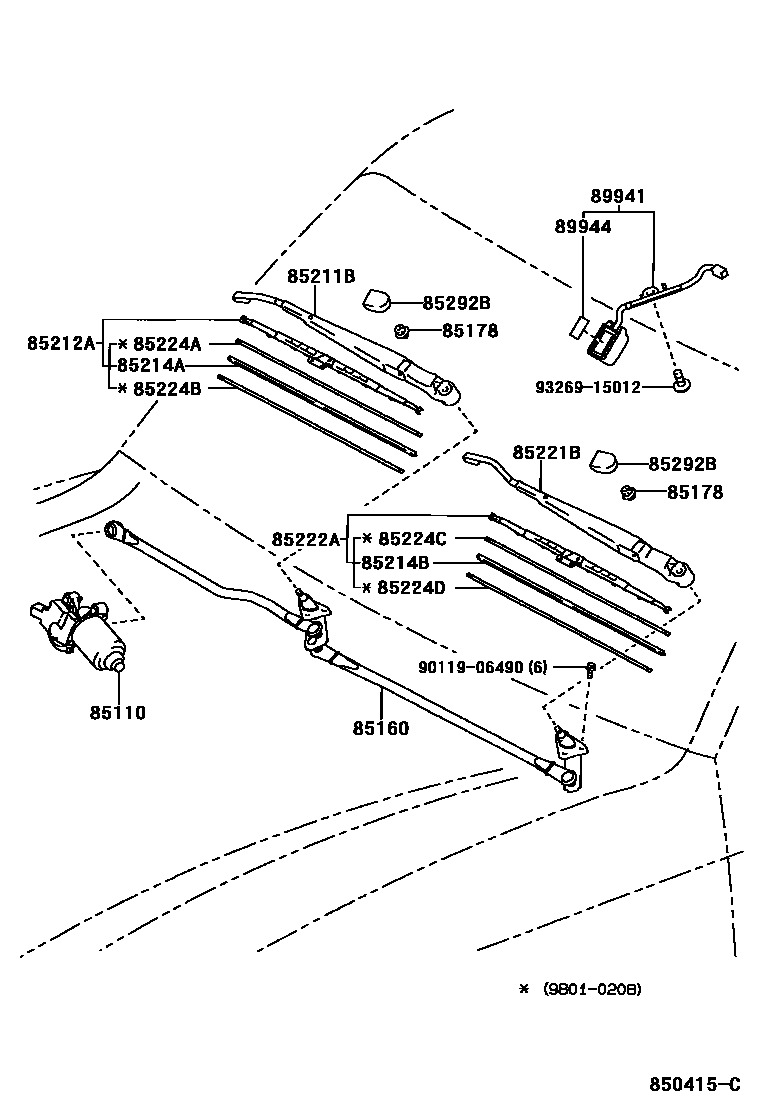

WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85222ABLADE, FR WIPER, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85292BCAP, FRONT WIPER ARM HEAD
89941SENSOR, RAIN
W(NIGHT VIEW)
W(NIGHT VIEW)
W(NIGHT VIEW)
89944TAPE, RAIN SENSOR
9011906490
main90119-06490
9326915012
main93269-15012
18 parts on this diagram · 1 diagram in section
