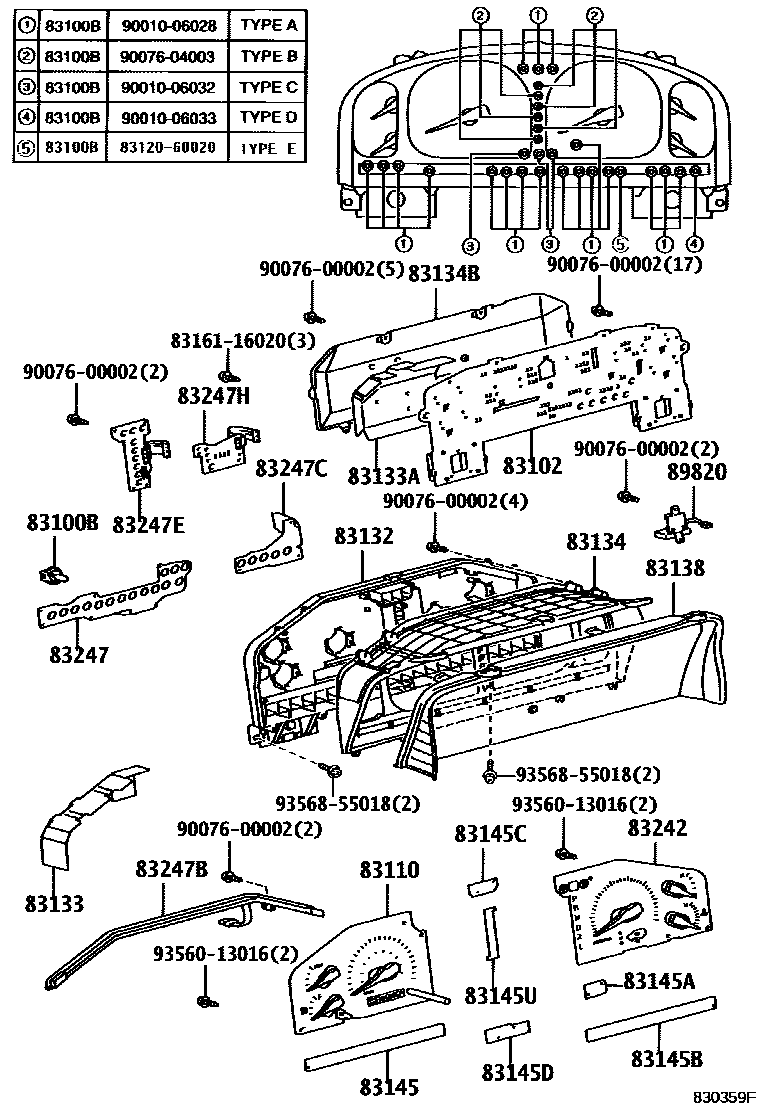

METER
83100METER ASSY, COMBINATION
CANADA SPEC
CANADA SPEC
CANADA SPEC
TAIWAN SPEC
TAIWAN SPEC
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,W(SOCKET),TYPE E:REFER TO ILLUSTRATION
12V 1.12W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION
14V 0.84W,W(SOCKET)
12V 1.4W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION
12V 1.12W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
CANADA SPEC
CANADA SPEC
83110SPEEDOMETER ASSY
CANADA SPEC
CANADA SPEC
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83133APLATE, COMBINATION METER, NO.2
83134COVER, COMBINATION METER, NO.1
83134BCOVER, COMBINATION METER, NO.2
83145LENS, METER, NO.1
CANADA SPEC
83145ALENS, METER, NO.2
83145BLENS, METER, NO.3
CANADA SPEC
CANADA SPEC
83145CLENS, METER, NO.4
83145DLENS, METER, NO.5
83145ULENS, METER, NO.9
83242TACHOMETER ASSY, ENGINE
CANADA SPEC
CANADA SPEC
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
83247CPLATE, MATER CIRCUIT, NO.3
83247EPLATE, MATER CIRCUIT, NO.4
83247HPLATE, METER CIRCUIT, NO.5
8316116020CASE, COMBINATION METER MIRROR, NO.1
main83161-16020
9007600002
main90076-00002
9356013016
main93560-13016
9356855018
main93568-55018
27 parts on this diagram · 3 diagrams in section
