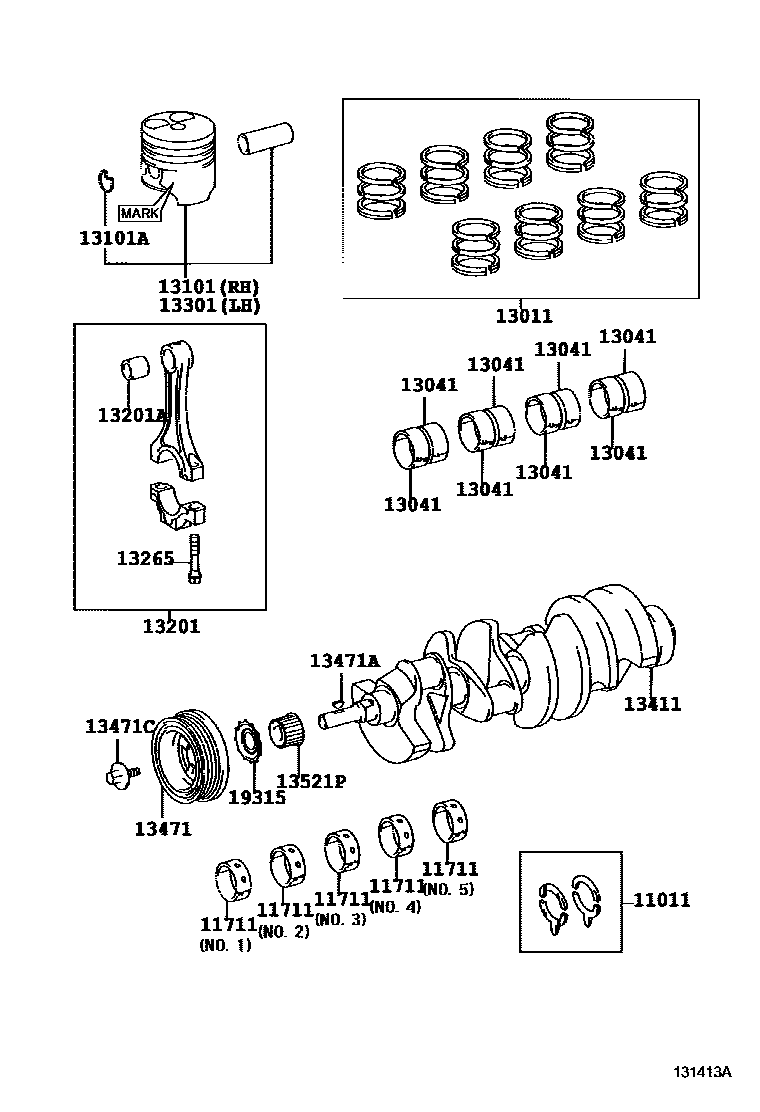

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
O/S 0.125
11711BEARING, CRANKSHAFT
MARK 1,NO.2,3,4 REFER R/M
MARK 2,NO.2,3,4 REFER R/M
MARK 3,NO.2,3,4 REFER R/M
MARK 4,NO.2,3,4 REFER R/M
MARK 5,NO.2,3,4 REFER R/M
MARK1,NO.2,3,4 REFER R/M
MARK2,NO.2,3,4 REFER R/M
MARK3,NO.2,3,4 REFER R/M
MARK4,NO.2,3,4 REFER R/M
MARK5,NO.2,3,4 REFER R/M
MARK 3,NO.1,5 REFER R/M
MARK 4,NO.1,5 REFER R/M
MARK 5,NO.1,5 REFER R/M
MARK 6,NO.1,5 REFER R/M
MARK 7,NO.1,5 REFER R/M
MARK 3,NO.1,5 REFER R/M
MARK 4,NO.1,5 REFER R/M
MARK 5,NO.1,5 REFER R/M
MARK 6,NO.1,5 REFER R/M
MARK 7,NO.1,5 REFER R/M
MARK3,NO.1,5 REFER R/M
MARK4,NO.1,5 REFER R/M
MARK5,NO.1,5 REFER R/M
MARK6,NO.1,5 REFER R/M
MARK7,NO.1,5 REFER R/M
13011RING SET, PISTON
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
REFER TO REPAIR MANUAL,MARK 2,MARK 2
REFER TO REPAIR MANUAL,MARK 3,MARK 3
REFER TO REPAIR MANUAL,MARK 4,MARK 4
REFER TO REPAIR MANUAL,MARK 5,MARK 5
REFER TO REPAIR MANUAL,MARK 6,MARK 6
REFER TO REPAIR MANUAL,MARK 7,MARK 7
REFER TO REPAIR MANUAL,MARK2,MARK 2
REFER TO REPAIR MANUAL,MARK3,MARK 3
REFER TO REPAIR MANUAL,MARK4,MARK 4
REFER TO REPAIR MANUAL,MARK5,MARK 5
REFER TO REPAIR MANUAL,MARK6,MARK 6
REFER TO REPAIR MANUAL,MARK7,MARK 7
13101PISTON SUB-ASSY, W/PIN
STD,REFER TO REPAIR MANUAL,MARK 1,MARK 50050
STD,REFER TO REPAIR MANUAL,MARK 2,MARK 50050
STD,REFER TO REPAIR MANUAL,MARK 3,MARK 50050
STD,REFER TO REPAIR MANUAL,MARK 1,MARK 50051
STD,REFER TO REPAIR MANUAL,MARK 2,MARK 50051
STD,REFER TO REPAIR MANUAL,MARK 3,MARK 50051
STD,REFER TO REPAIR MANUAL,MARK 1
STD,REFER TO REPAIR MANUAL,MARK 2
STD,REFER TO REPAIR MANUAL,MARK 3
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
O/S 0.50,MARK 50050
O/S 0.50,MARK 50051
O/S 0.50
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD,REFER TO REPAIR MANUAL,MARK 1,MARK 50040
STD,REFER TO REPAIR MANUAL,MARK 2,MARK 50040
STD,REFER TO REPAIR MANUAL,MARK 3,MARK 50040
STD,REFER TO REPAIR MANUAL,MARK 1,MARK 50041
STD,REFER TO REPAIR MANUAL,MARK 2,MARK 50041
STD,REFER TO REPAIR MANUAL,MARK 3,MARK 50041
STD,REFER TO REPAIR MANUAL,MARK 1
STD,REFER TO REPAIR MANUAL,MARK 2
STD,REFER TO REPAIR MANUAL,MARK 3
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
O/S 0.50,MARK 50040
O/S 0.50,MARK 50041
O/S 0.50
O/S 0.50
O/S 0.50
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
