ENGINE OVERHAUL GASKET KIT

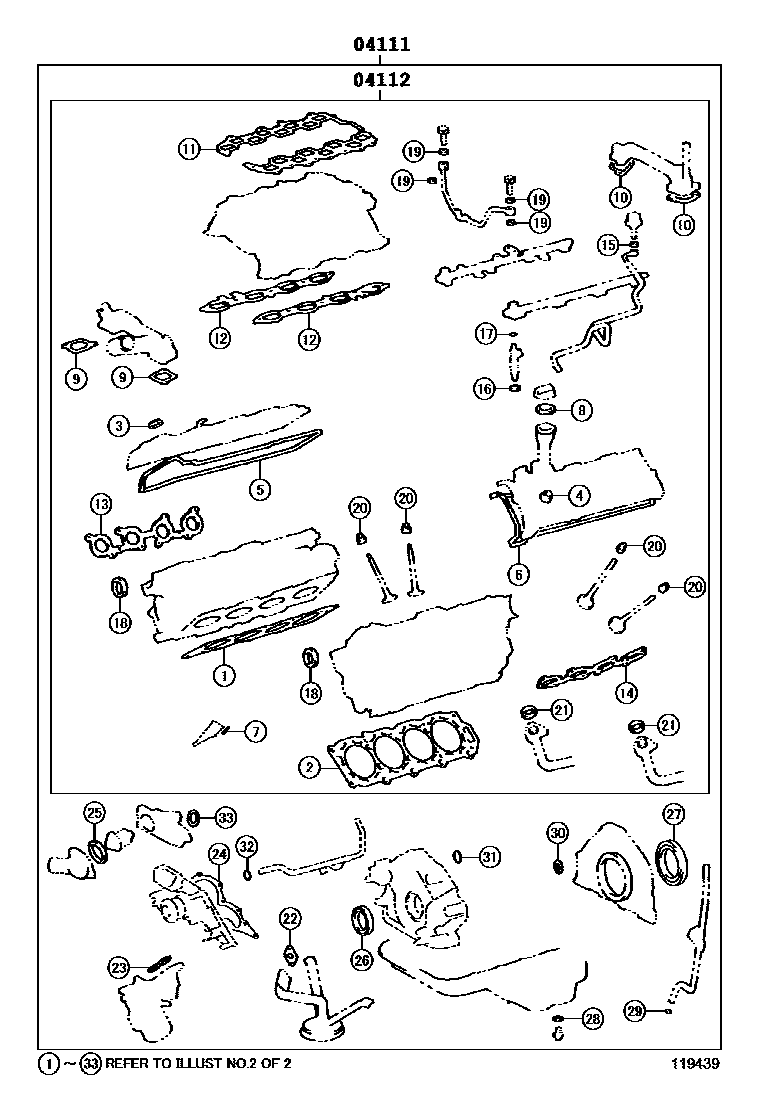

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-50120i199801-199808

main04111-50121i199808-200006

main04111-50122i200006-200208

main04111-50380i200405-200505

main04111-50400i200505

04112GASKET KIT, ENGINE VALVE GRIND

main04112-50120i199801-199808

main04112-50121i199808-200006

main04112-50122i200006-200208

main04112-50370i200405-200505

main04112-50390i200505

2 parts on this diagram · 4 diagrams in section
