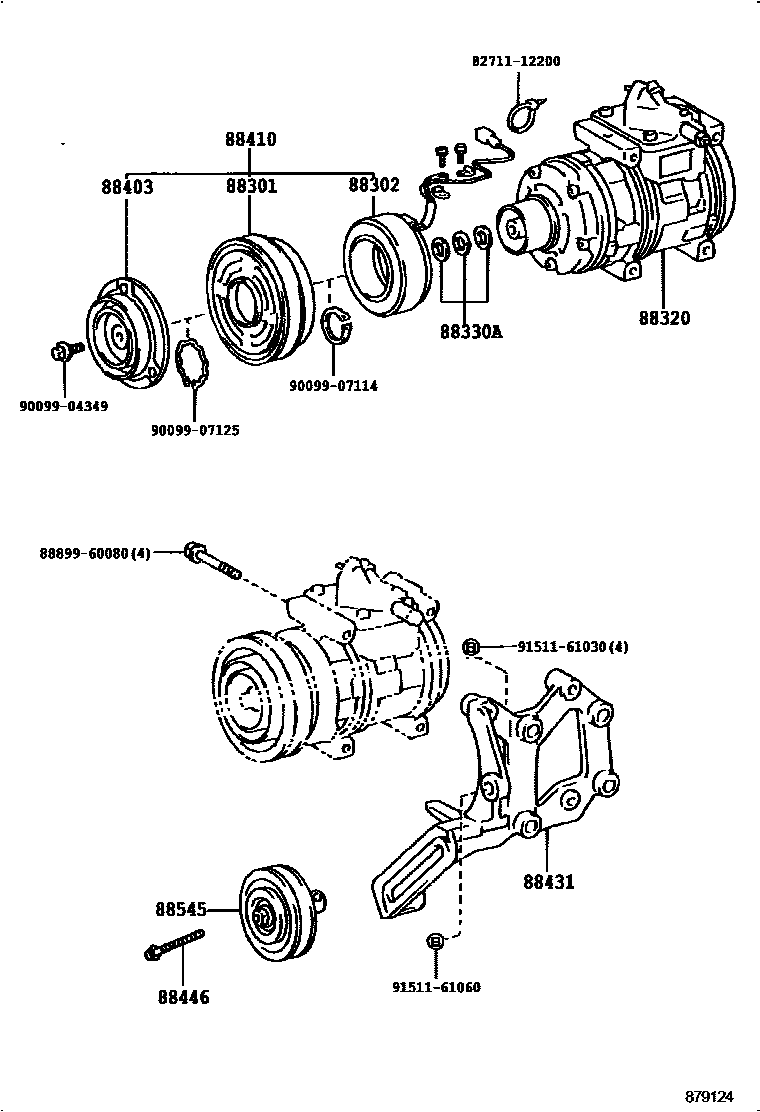

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22070iFZJ80199511-199801

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-26040iFZJ80199511-199801

88320COMPRESSOR ASSY, COOLER

main88320-60580iFZJ80199511-199801

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iFZJ80199511-199801

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iFZJ80199511-199801

88410CLUTCH ASSY, MAGNET

main88410-26110iFZJ80199511-199801

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60200iFZJ80199511-199801

88446BOLT, IDLE PULLEY

main88446-35040iFZJ80199511-199801

88545PULLEY ASSY, IDLE

main88440-26090iFZJ80199511-199801

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8889960080COVER, EVAPORATOR

main88899-60080

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9151161030

main91511-61030

9151161060

main91511-61060

16 parts on this diagram · 2 diagrams in section
