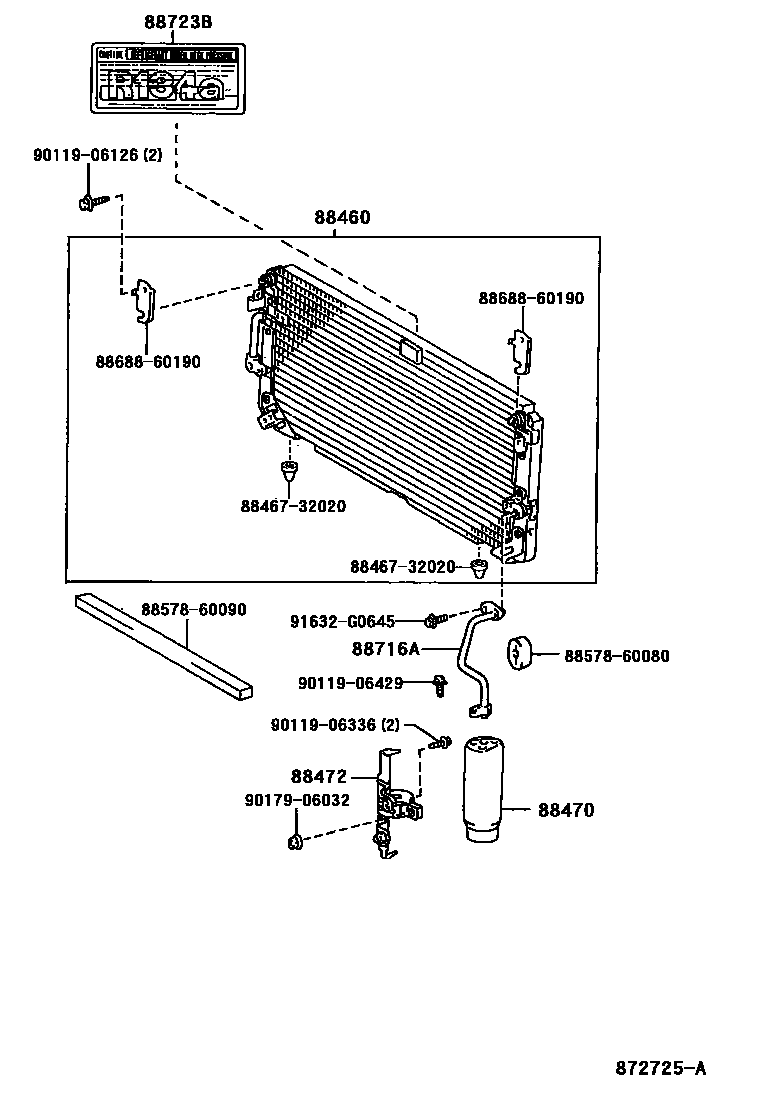

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1PIPING

88460CONDENSER ASSY, COOLER

main88460-60160iFZJ80199511-199801

88470RECEIVER & DRYER ASSY, COOLER

main88471-50020iFZJ80199511-199801

88472BRACKET, RECEIVER TANK, NO.1

main88472-60071iFZJ80199511-199801

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-6A421iFZJ80199511-199801

88723BLABEL, COOLER SERVICE CAUTION

main88723-30080iFZJ80199511-199801

8846732020CUSHION, COOLER CONDENSER, NO.1

main88467-32020

8857860080PAKING, COOLER AIR DUCT

main88578-60080

8857860090PAKING, COOLER AIR DUCT

main88578-60090

8868860190BRACKET, COOLER DIAPHRAGM

main88688-60190

9011906126

main90119-06126

9011906336

main90119-06336

9011906429

main90119-06429

9017906032

main90179-06032

91632G0645

main91632-G0645

14 parts on this diagram · 2 diagrams in section
