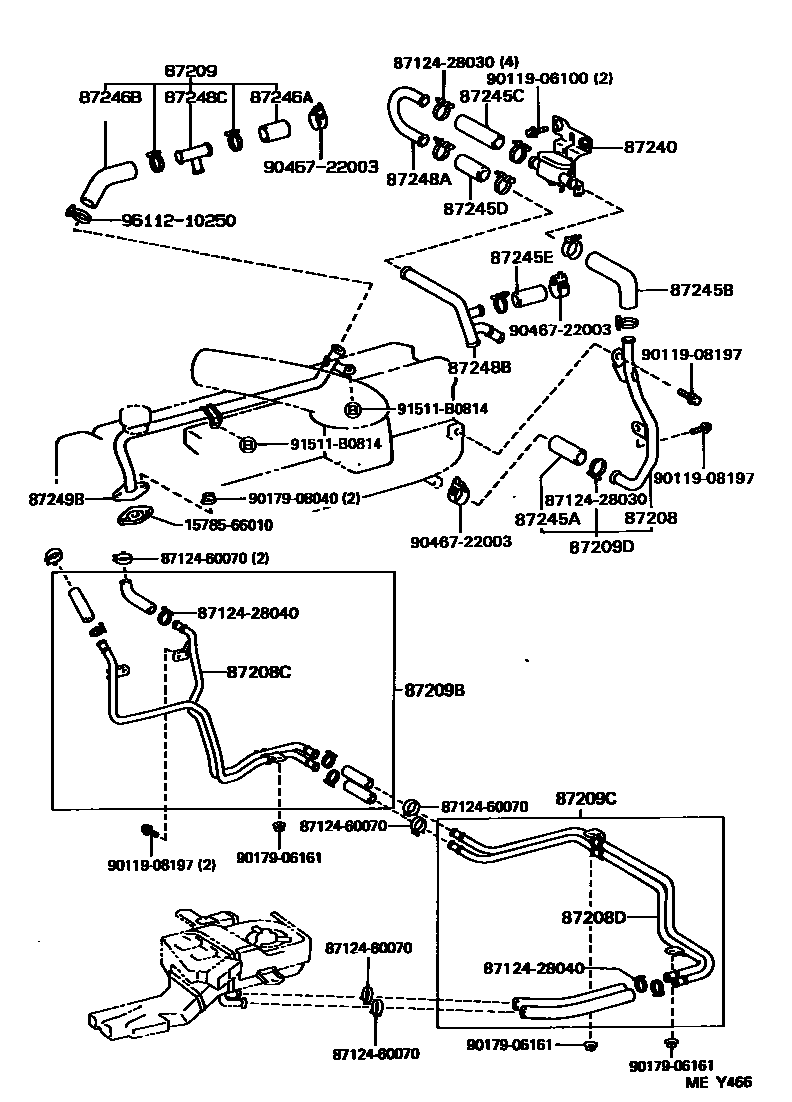

HEATING & AIR CONDITIONING - WATER PIPING
87208PIPE SUB-ASSY, HEATER WATER
87208CPIPE SUB-ASSY, HEATER WATER, C
87208DPIPE SUB-ASSY, HEATER WATER, D
87209HOSE SUB-ASSY, WATER
87209BHOSE SUB-ASSY, WATER, B
87209CHOSE SUB-ASSY, WATER, C
87209DHOSE SUB-ASSY, WATER, D
87240VALVE ASSY, HEATER WATER
87245AHOSE, HEATER WATER, INLET A
*H,L=60
87245BHOSE, HEATER WATER, INLET B
87245CHOSE, HEATER WATER ,INLET C
*H,L=60
87245DHOSE, HEATER WATER, INLET D
*H,L=50; *H,L=60
87245EHOSE, HEATER WATER, INLET E
*H,L=60; *H,L=65
87246AHOSE, HEATER WATER, OUTLET A
W/O COLD SPEC
87246BHOSE, HEATER WATER, OUTLET B
87248APIPE, HEATER WATER INLET, A
87248BPIPE, HEATER WATER INLET, B
W/O COLD SPEC
87248CPIPE, HEATER WATER INLET, C
87249BPIPE, HEATER WATER OUTLET, B
1578566010GASKET, OIL COOLER
main15785-66010
8712428030CLAMP, HEATER
main87124-28030
8712428040CLAMP, HEATER
main87124-28040
8712460070CLAMP, HEATER
main87124-60070
9011906100
main90119-06100
9011908197
main90119-08197
9017906161
main90179-06161
9017908040
main90179-08040
9046722003
main90467-22003
91511B0814
main91511-B0814
9611210250
main96112-10250
30 parts on this diagram · 1 diagram in section
