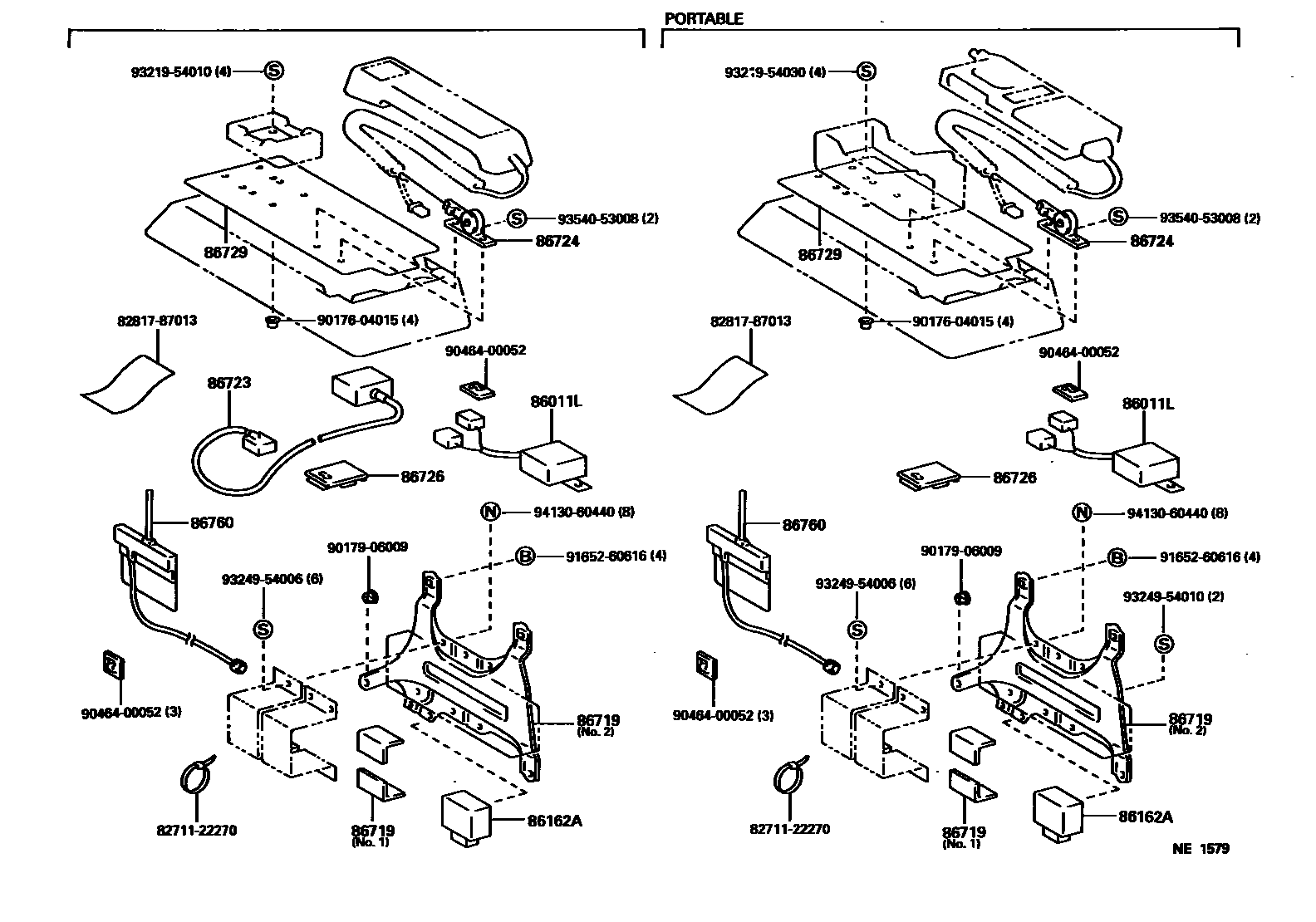

TELEPHONE & MAYDAY

86011LFILTER, NOISE

main90980-05281iFZJ80199511-199801

86162ARELAY, SPEAKER

main86162-0W010iFZJ80199704-199801

main86162-50010iFZJ80199511-199704

86719BRACKET, TELEPHONE

main86719-50100×4iFZJ80199511-199801

NO.1

main86719-60010iFZJ80199511-199801

NO.2

86723WIRE, MOBILEPHONE

main86723-50100iFZJ80199511-199801

86724GUIDE, CURL CORD

main86724-33010iFZJ80199511-199801

86726COVER, MOBILEPHONE

main86726-40010iFZJ80199511-199801

86729BRACKET, MOBILEPHONE

main86729-60010iFZJ80199511-199801

86760ANTENNA ASSY, TELEPHONE

main86760-60010iFZJ80199511-199801

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

8281787013PROTECTOR, WIRING HARNESS, NO.1

main82817-87013

9017604015

main90176-04015

9017906009

main90179-06009

9046400052

main90464-00052

9165260616

main91652-60616

9321954010

main93219-54010

9321954030

main93219-54030

9324954006

main93249-54006

9324954010

main93249-54010

9354053008

main93540-53008

9413060440

main94130-60440

20 parts on this diagram · 1 diagram in section
