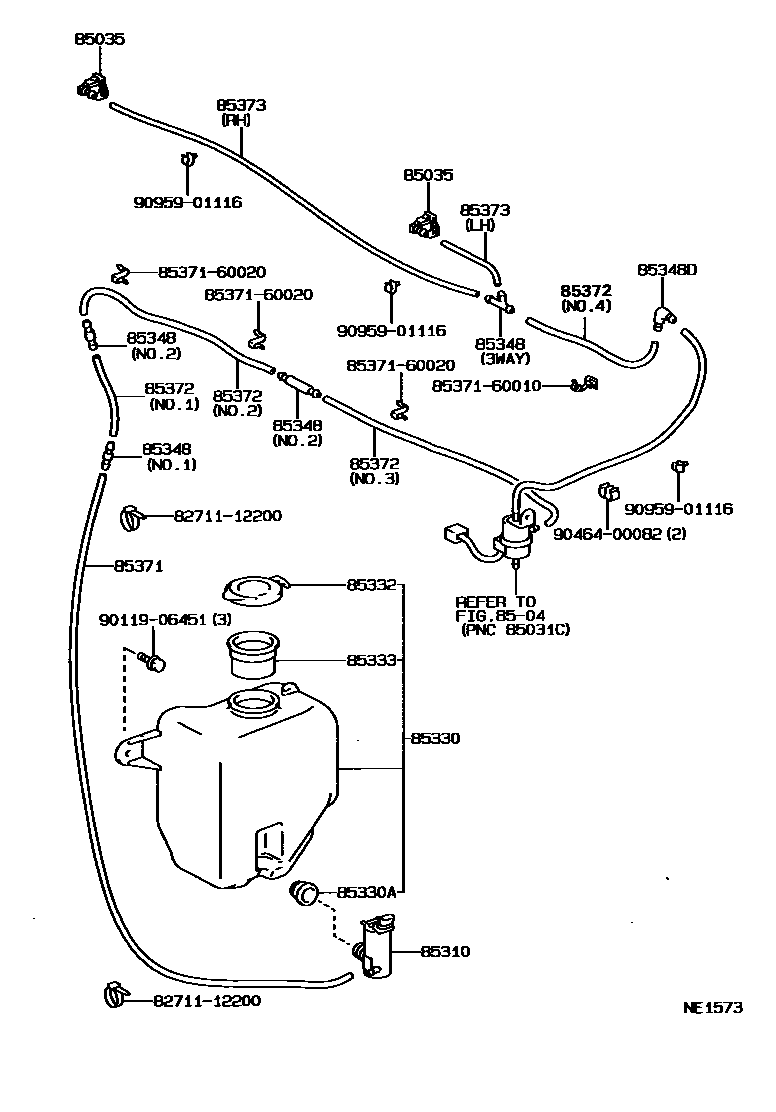

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85382-60020×2iFZJ80199511-199801

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-50020iFZJ80199511-199605

main85330-60130iFZJ80199605-199801

85330JAR ASSY, WINDSHIELD WASHER

main85315-60070iFZJ80199511-199605

main85315-60071iFZJ80199605-199801

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iFZJ80199511-199801

85332CAP, WINDSHIELD WASHER JAR

main85316-34040iFZJ80199511-199605

main85316-60111iFZJ80199605-199801

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010iFZJ80199511-199801

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iFZJ80199511-199801

NO.1

main85348-14390iFZJ80199511-199801

3WAY

main85375-10260×2iFZJ80199511-199801

NO.2

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iFZJ80199511-199801

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iFZJ80199511-199801

L=1450

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075iFZJ80199511-199801

L=1100

main90099-33080iFZJ80199511-199801

L=1450

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iFZJ80199511-199801

L=1450

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8537160010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-60010

8537160020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-60020

9011906451

main90119-06451

9046400082

main90464-00082

9095901116

main90959-01116

18 parts on this diagram · 1 diagram in section
