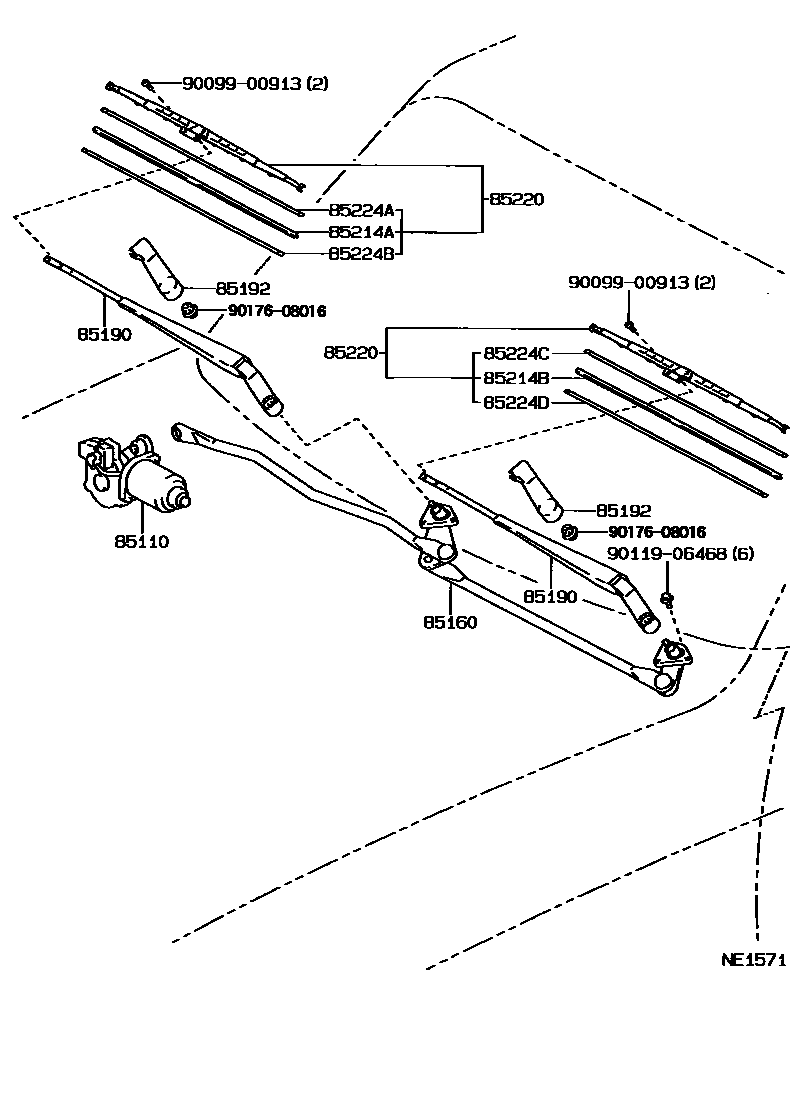

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60141iFZJ80199511-199801

85160LINK ASSY, WINDSHIELD WIPER

main85150-60111iFZJ80199511-199801

85190ARM ASSY, WINDSHIELD WIPER

main85221-60011iFZJ80199511-199701

RH

main85221-60012iFZJ80199701-199801

RH

main85221-60021iFZJ80199511-199701

LH

main85221-60022iFZJ80199701-199801

LH

85192COVER, WINDSHIELD WIPER ARM

main85292-60020×2iFZJ80199511-199801

85214ARUBBER, WIPER, RH

main85214-20320iFZJ80199511-199801

85214BRUBBER, WIPER, LH

main85214-20330iFZJ80199511-199801

85220BLADE ASSY, WINDSHIELD WIPER

main85212-60050iFZJ80199511-199701

RH

main85212-60051iFZJ80199701-199801

RH

main85222-1G080iFZJ80199701-199801

LH

main85222-60070iFZJ80199511-199701

LH

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-60050iFZJ80199511-199801

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-60050iFZJ80199511-199801

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-60060iFZJ80199511-199801

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-60060iFZJ80199511-199801

9009900913

main90099-00913

9011906468

main90119-06468

9017608016

main90176-08016

14 parts on this diagram · 1 diagram in section
