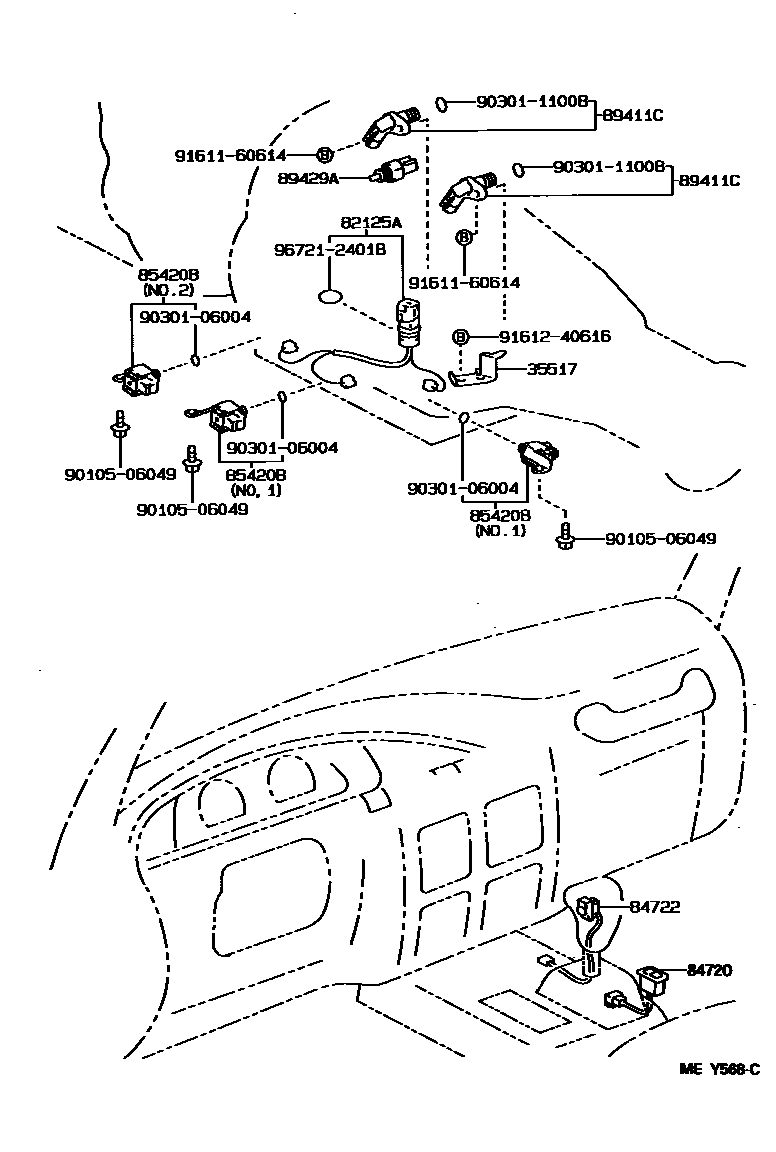

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

35517PLATE, TRANSMISSION WIRE LOCK

main35517-30010iFZJ80199511-199801

82125AWIRE, TRANSMISSION

main82125-30400iFZJ80199511-199801

84720SWITCH ASSY, PATTERN SELECT

main84720-60060iFZJ80199511-199801

84722SWITCH, TRANSMISSION CONTROL

main84722-36050-C0iFZJ80199511-199801

BLACK,TRIM4#

85420BSOLENOID ASSY, TRANSMISSION

main85420-30200×2iFZJ80199511-199801

NO.1

main85420-30220iFZJ80199511-199801

NO.3

89411CSENSOR, SPEED

main89411-50010×2iFZJ80199511-199801

89429ASENSOR, TEMPERATURE

main89429-34010iFZJ80199511-199801

9010506049

main90105-06049

9030106004

main90301-06004

9030111008

main90301-11008

9161160614

main91611-60614

9161240616

main91612-40616

9672124018

main96721-24018

13 parts on this diagram · 1 diagram in section
