SWITCH & RELAY & COMPUTER

0001 1E/G, T/M, T/F & FR DIEF 0002 1E/G ROOM RELAY 0003 1RH COWL RELAY 0004 1LH COWL RELAY 0005 1INSTRUMENT PANEL SW. 0006 1IGNITION SW. & COMBINATION SW0007 1ROOF & FLOOR SW. 0008 1DOOR SW.

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iFZJ80199511-199801

NIPPONDENSO

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60040iFZJ80199511-199801

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iFZJ80199511-199801

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080iFZJ80199511-199801

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010iFZJ80199511-199801

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-12010×2iFZJ80199511-199801

84540SWITCH ASSY, NEUTRAL START

main84540-30270iFZJ80199511-199801

88620CTHERMO SWITCH ASSY

main88790-60050iFZJ80199511-199801

89491SENSOR, ENGINE OIL LEVEL

main89491-60010iFZJ80199511-199801

89615SENSOR, KNOCK CONTROL

main89615-30050×2iFZJ80199511-199801

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271160020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60020

9043027001

main90430-27001

9165140825

main91651-40825

9338516014

main93385-16014

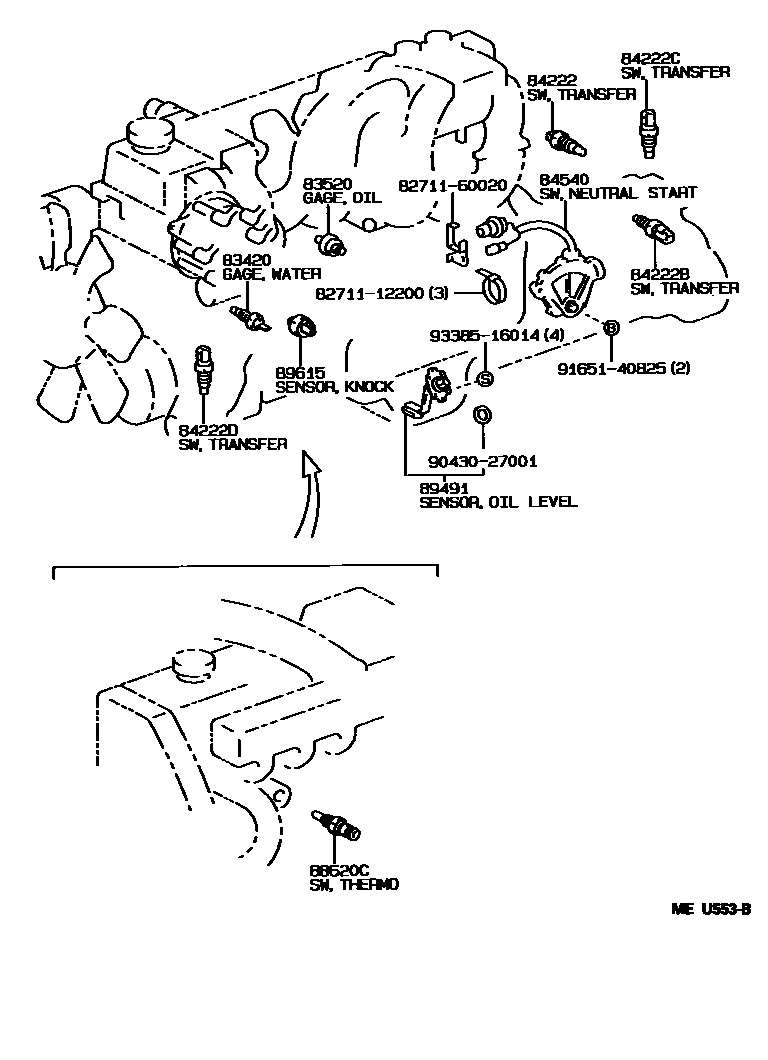

15 parts on this diagram · 8 diagrams in section
