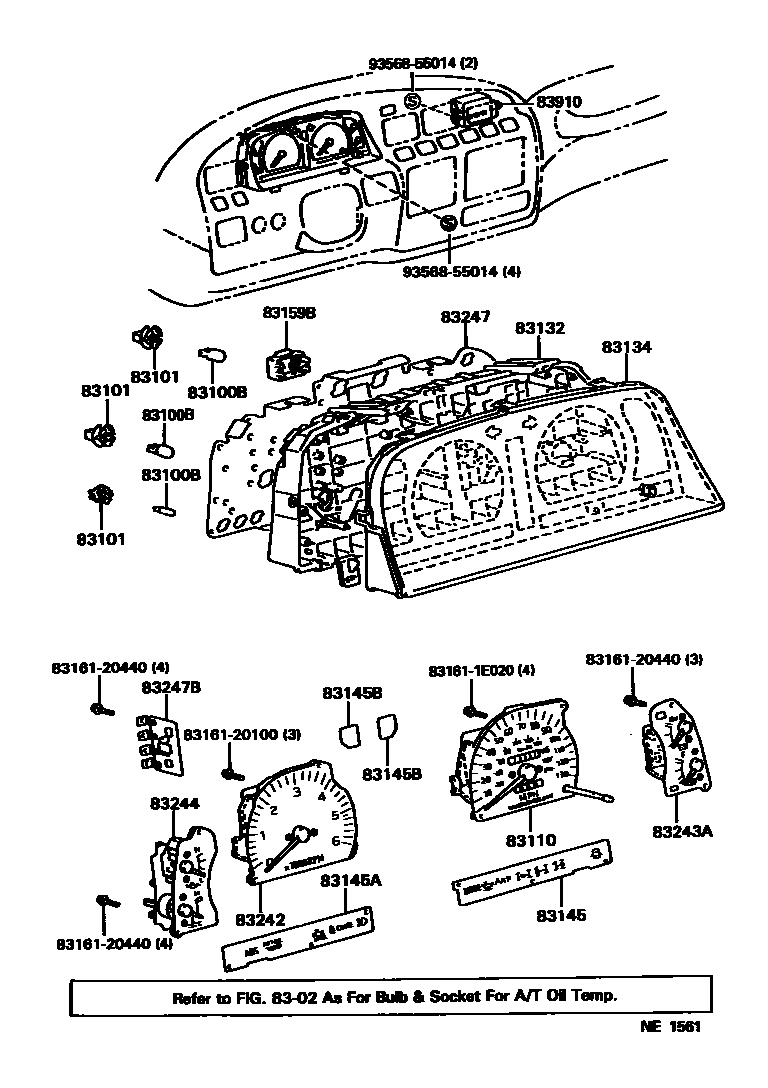

METER
8302INDICATOR
83100BBULB, COMBINATION METER, NO.1
12V 3.0W GREEN CAP,12V 3.0W GREEN CAP
12V 2.0W
14V 2.0W
12V 1.4W,W(SOCKET)
12V3.4W,W(GREEN CAP)
12V 3.4W,W(SOCKET)
12V 1.2W W/O SOCKET
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
1.2W OR 1.4W BULB
3.4W BULB
83110SPEEDOMETER ASSY
CANADA SPEC
83132CASE, COMBINATION METER
83134COVER, COMBINATION METER, NO.1
83145LENS, METER, NO.1
CANADA SPEC
83145ALENS, METER, NO.2
CANADA SPEC
83145BLENS, METER, NO.3
83159BRELAY ASSY, METER
83242TACHOMETER ASSY, ENGINE
CANADA SPEC
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
83910CLOCK ASSY
831611E020CASE, COMBINATION METER MIRROR, NO.1
main83161-1E020
8316120100CASE, COMBINATION METER MIRROR, NO.1
main83161-20100
8316120440CASE, COMBINATION METER MIRROR, NO.1
main83161-20440
9356855014
main93568-55014
20 parts on this diagram · 2 diagrams in section
