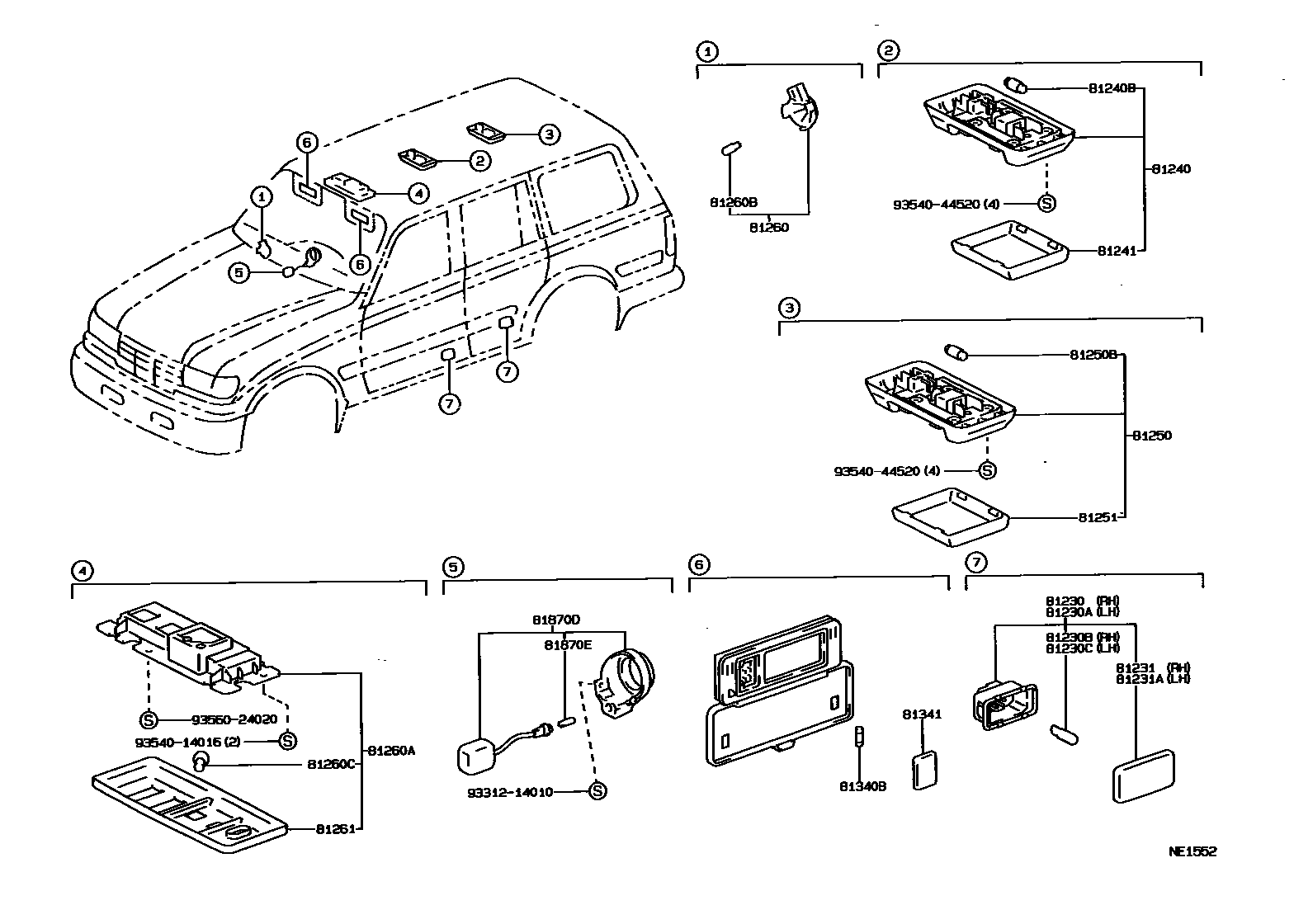

INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230ALAMP ASSY, COURTESY, NO.2
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81230CBULB(FOR COURTESY LAMP NO.2)
12V 3.8W
81231LENS, COURTESY LAMP
81231ALENS, COURTESY LAMP, NO.2
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM4#
81250BBULB, ROOM LAMP, NO.2
12V 10W
81251LENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
IVORY,TRIM4#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 10W
81261LENS AND COVER, MAP LAMP
IVORY,TRIM4#
81340BBULB (FOR VANITY LAMP)
12V 3W
81341LENS, VANITY LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
9331214010
main93312-14010
9354014016
main93540-14016
9354044520
main93540-44520
9356024020
main93560-24020
25 parts on this diagram · 1 diagram in section
