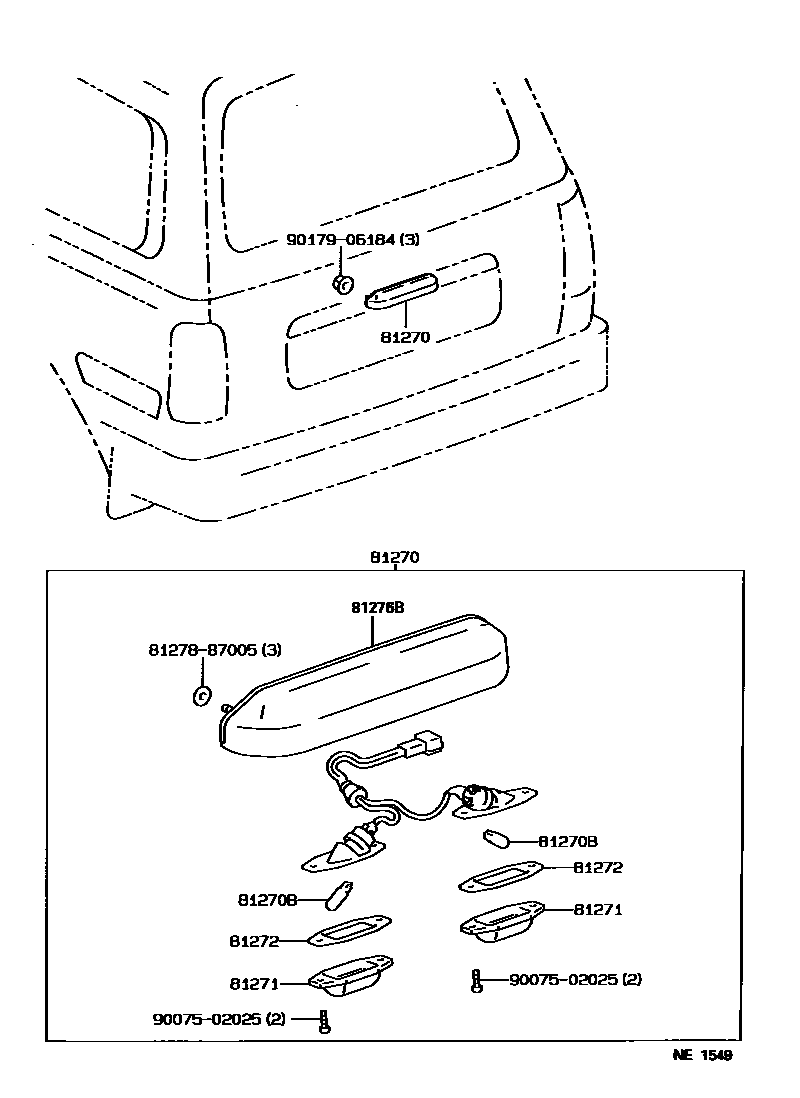

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-60110iFZJ80199511-199801

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iFZJ80199511-199801

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-24010×2iFZJ80199511-199801

81272GASKET, LICENSE PLATE LAMP LENS

main81272-24010×2iFZJ80199511-199801

81276BCOVER, LICENSE PLATE LAMP

main81276-60110iFZJ80199511-199801

8127887005COVER, LICENSE PLATE LAMP

main81278-87005

9007502025

main90075-02025

9017906184

main90179-06184

8 parts on this diagram · 1 diagram in section
