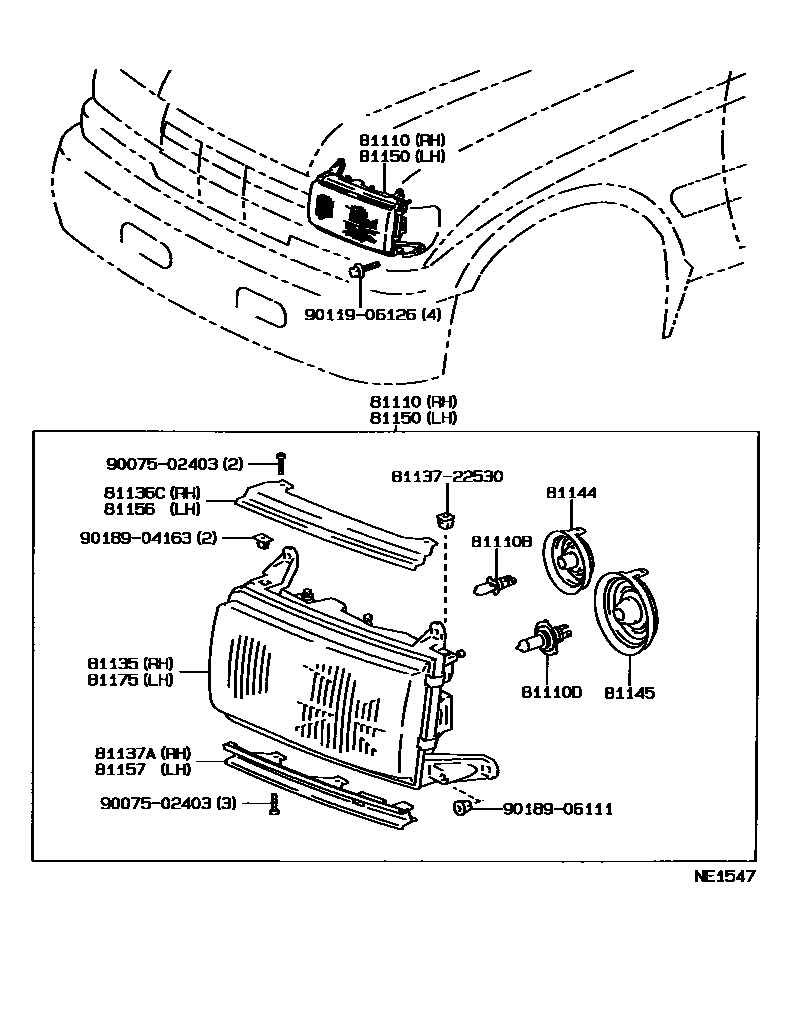

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-60830iFZJ80199511-199801

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2iFZJ80199511-199801

12V 51W

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iFZJ80199511-199801

12V 65W

81135UNIT ASSY, HEADLAMP, RH

main81130-60830iFZJ80199511-199801

81136CRIM, HEADLAMP, RH

main81116-60830iFZJ80199511-199801

81137ARIM, HEADLAMP, RH

main81117-60395iFZJ80199511-199801

81144COVER, HEADLAMP, NO.1

main90075-99028×2iFZJ80199511-199801

81145COVER, HEADLAMP, NO.2

main90075-99027×2iFZJ80199511-199801

81150HEADLAMP ASSY, LH

main81150-60650iFZJ80199511-199801

81156RIM, HEADLAMP, LH

main81156-60650iFZJ80199511-199801

81157RIM, HEADLAMP, LH

main81157-60215iFZJ80199511-199801

81175UNIT ASSY, HEADLAMP, LH

main81170-60650iFZJ80199511-199801

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007502403

main90075-02403

9011906126

main90119-06126

9018904163

main90189-04163

9018906111

main90189-06111

17 parts on this diagram · 1 diagram in section
