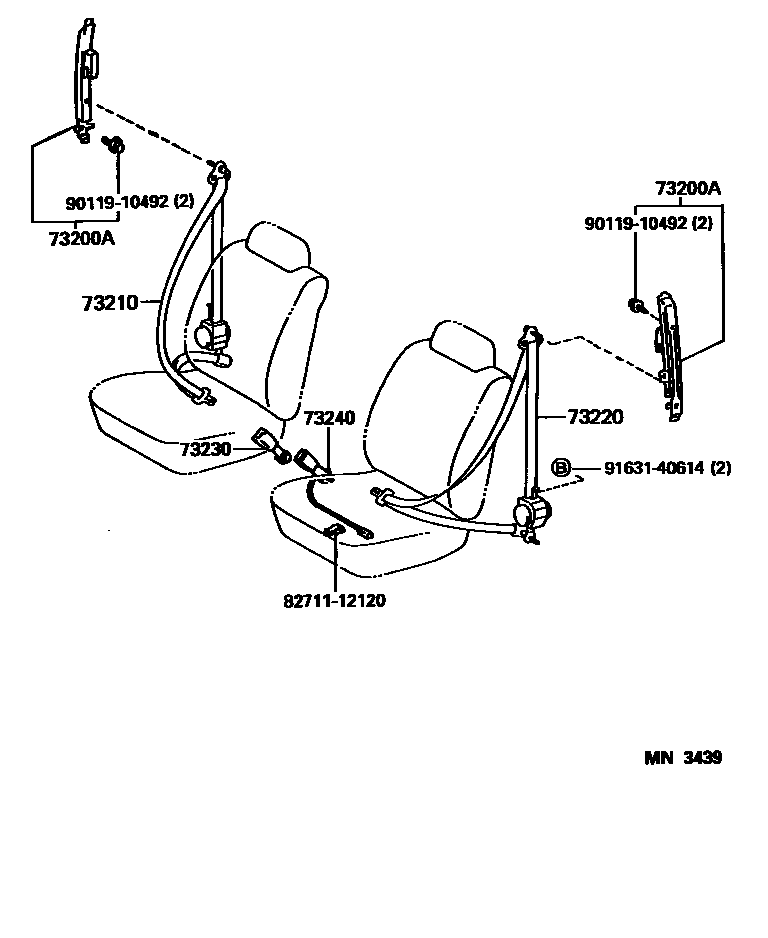

SEAT BELT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-60010-A0×2iFZJ80199511-199801

IVORY,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60350-E0iFZJ80199511-199801

OAK,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60270-E0iFZJ80199511-199801

OAK,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-60200-E1iFZJ80199511-199801

OAK,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-60190-E1iFZJ80199511-199801

OAK,TRIM4#

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

9011910492

main90119-10492

9163140614

main91631-40614

8 parts on this diagram · 2 diagrams in section
