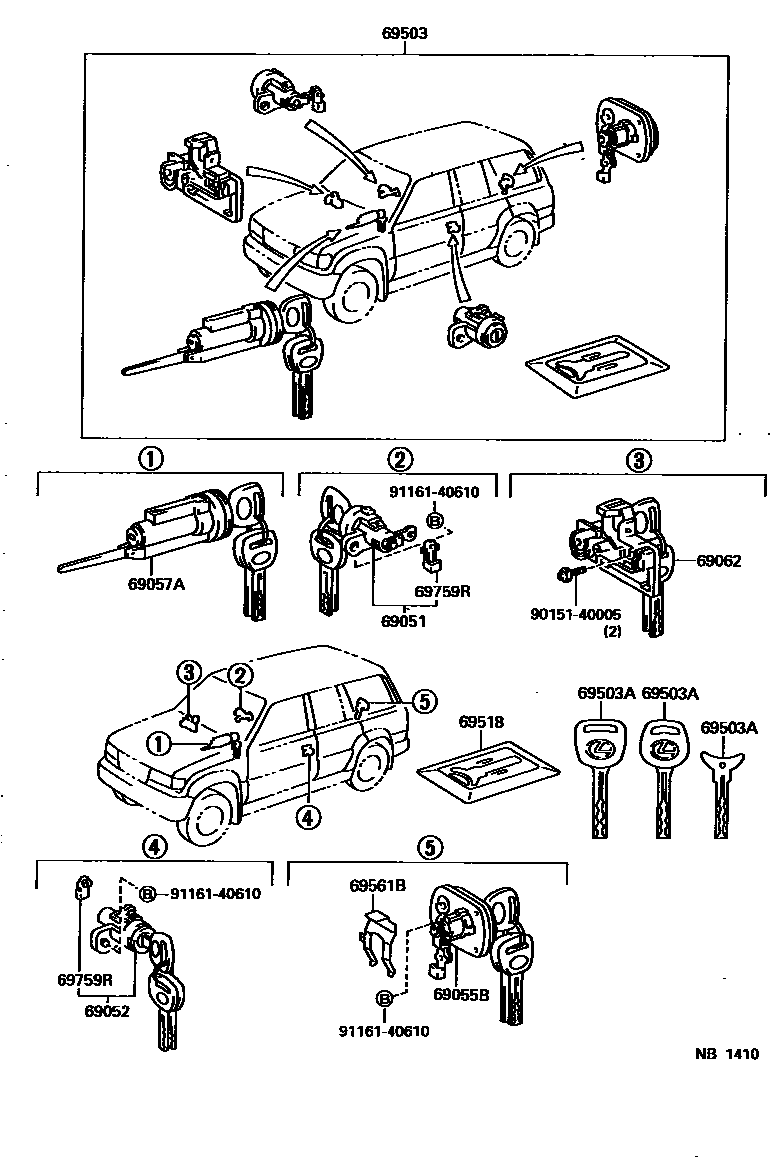

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-60100iFZJ80199511-199801

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-60100iFZJ80199511-199801

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-60090iFZJ80199511-199801

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-60140iFZJ80199511-199801

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-60060iFZJ80199511-199801

69503CYLINDER SET, LOCK

main69005-6A280iFZJ80199511-199801

69503AKEY, BLANK

main90999-00173iFZJ80199511-199801

MASTER KEY,CARD TYPE

main90999-00220×3iFZJ80199511-199801

MASTER KEY,W(*68)

main90999-00221iFZJ80199511-199801

SUB KEY,W(*68)

69518CARD, SPARE KEY

main69518-50011iFZJ80199511-199801

69561BRETAINER, BACK DOOR LOCK CYLINDER

main69561-10040iFZJ80199511-199801

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-24080iFZJ80199511-199801

9015140005

main90151-40005

9116140610

main91161-40610

12 parts on this diagram · 1 diagram in section
