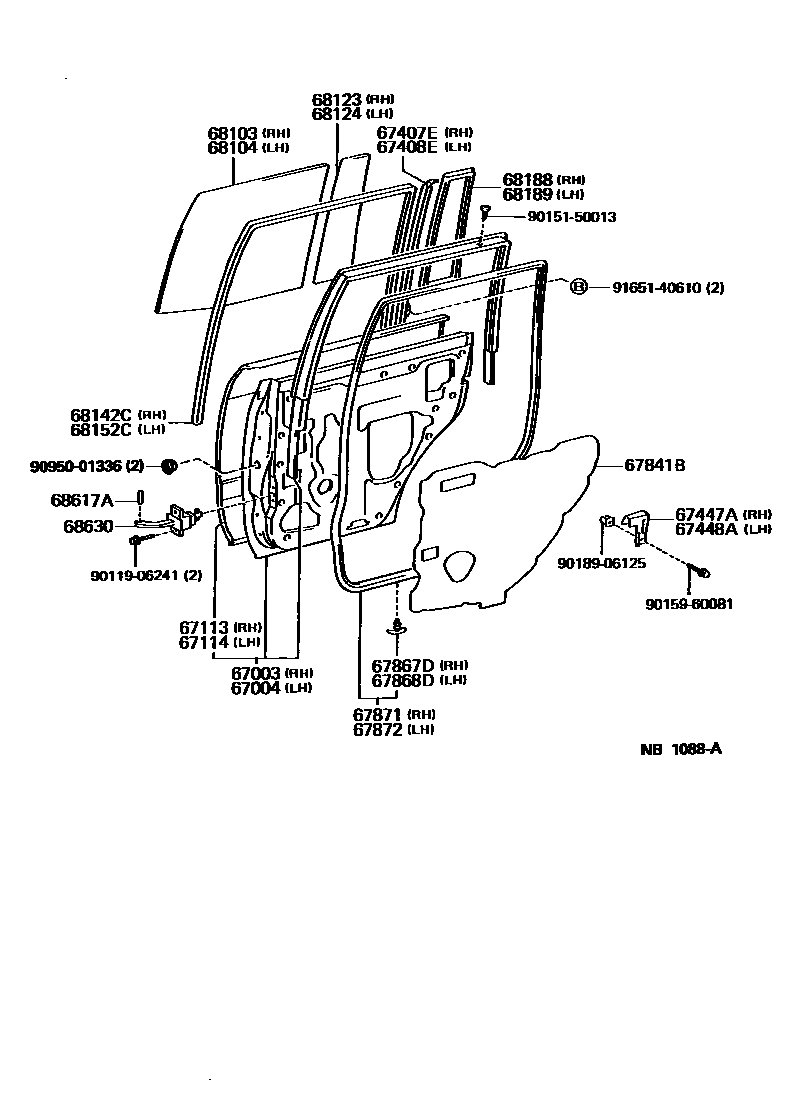

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67447APLATE, REAR DOOR INSIDE PANEL, RH
67448APLATE, REAR DOOR INSIDE PANEL, LH
67841BCOVER, REAR DOOR SERVICE HOLE
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*SERT,T=4.0,GRAY
68104GLASS SUB-ASSY, REAR DOOR, LH
*SERT,T=4.0,GRAY
68123GLASS, REAR DOOR WINDOW, RH
*SERT,T=4.0,GRAY
68124GLASS, REAR DOOR WINDOW, LH
*SERT,T=4.0,GRAY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68617APIN, REAR DOOR CHECK
68630CHECK ASSY, REAR DOOR
9011906241
main90119-06241
9015150013
main90151-50013
9015960081
main90159-60081
9018906125
main90189-06125
9095001336
main90950-01336
9165140610
main91651-40610
29 parts on this diagram · 2 diagrams in section
