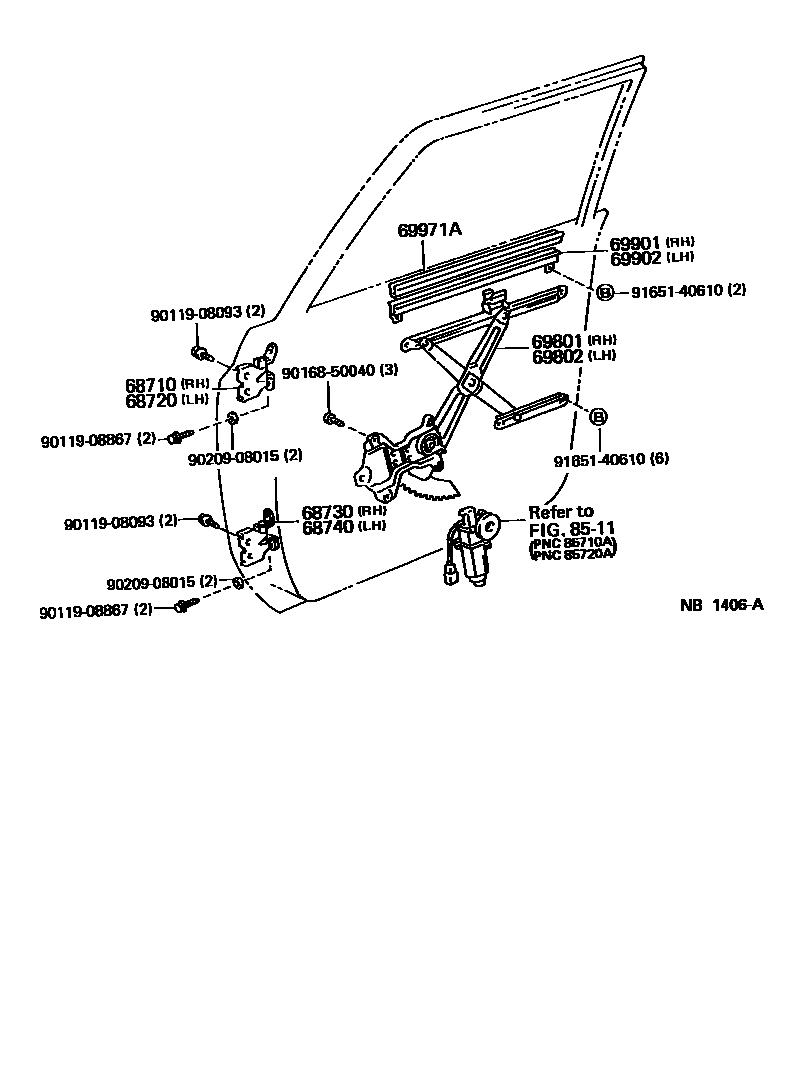

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-60030iFZJ80199511-199801

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-60030iFZJ80199511-199801

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-60010iFZJ80199511-199801

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-60010iFZJ80199511-199801

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60010iFZJ80199511-199801

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60010iFZJ80199511-199801

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-60010iFZJ80199511-199801

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-60010iFZJ80199511-199801

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-60010×2iFZJ80199511-199801

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908093

main90119-08093

9011908867

main90119-08867

9016850040

main90168-50040

9020908015

main90209-08015

9165140610

main91651-40610

15 parts on this diagram · 1 diagram in section
