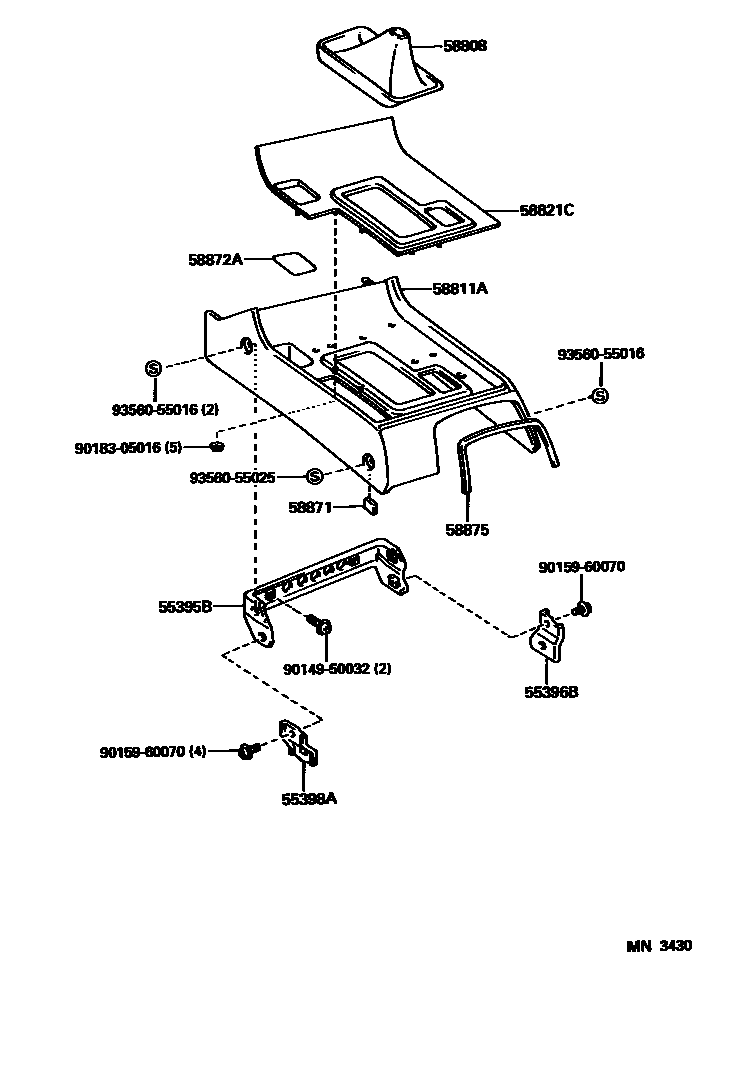

CONSOLE BOX & BRACKET

0001 1 0002 1

55395BBRACKET, CONSOLE MOUNTING, NO.3

main55395-60010iFZJ80199511-199801

55396BBRACKET, CONSOLE MOUNTING, NO.4

main55396-60010iFZJ80199511-199801

55398ABRACKET, CONSOLE MOUNTING, NO.6

main55398-60010iFZJ80199511-199801

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60050-C0iFZJ80199511-199801

BLACK,TRIM4#

58811ABOX, CONSOLE, FRONT

main58811-60130-E0iFZJ80199511-199801

OAK,TRIM4#

58821CPANEL, CONSOLE, UPPER

main58821-60020iFZJ80199511-199801

58871CUSHION, CONSOLE BOX

main58871-60020iFZJ80199511-199801

58872ACUSHION, CONSOLE BOX, NO.2

main58872-60020iFZJ80199511-199801

58875SPACER, CONSOLE BOX

main58875-60010-E0iFZJ80199511-199801

OAK,TRIM4#

9014950032

main90149-50032

9015960070

main90159-60070

9018305016

main90183-05016

9356055016

main93560-55016

9356055025

main93560-55025

14 parts on this diagram · 2 diagrams in section
