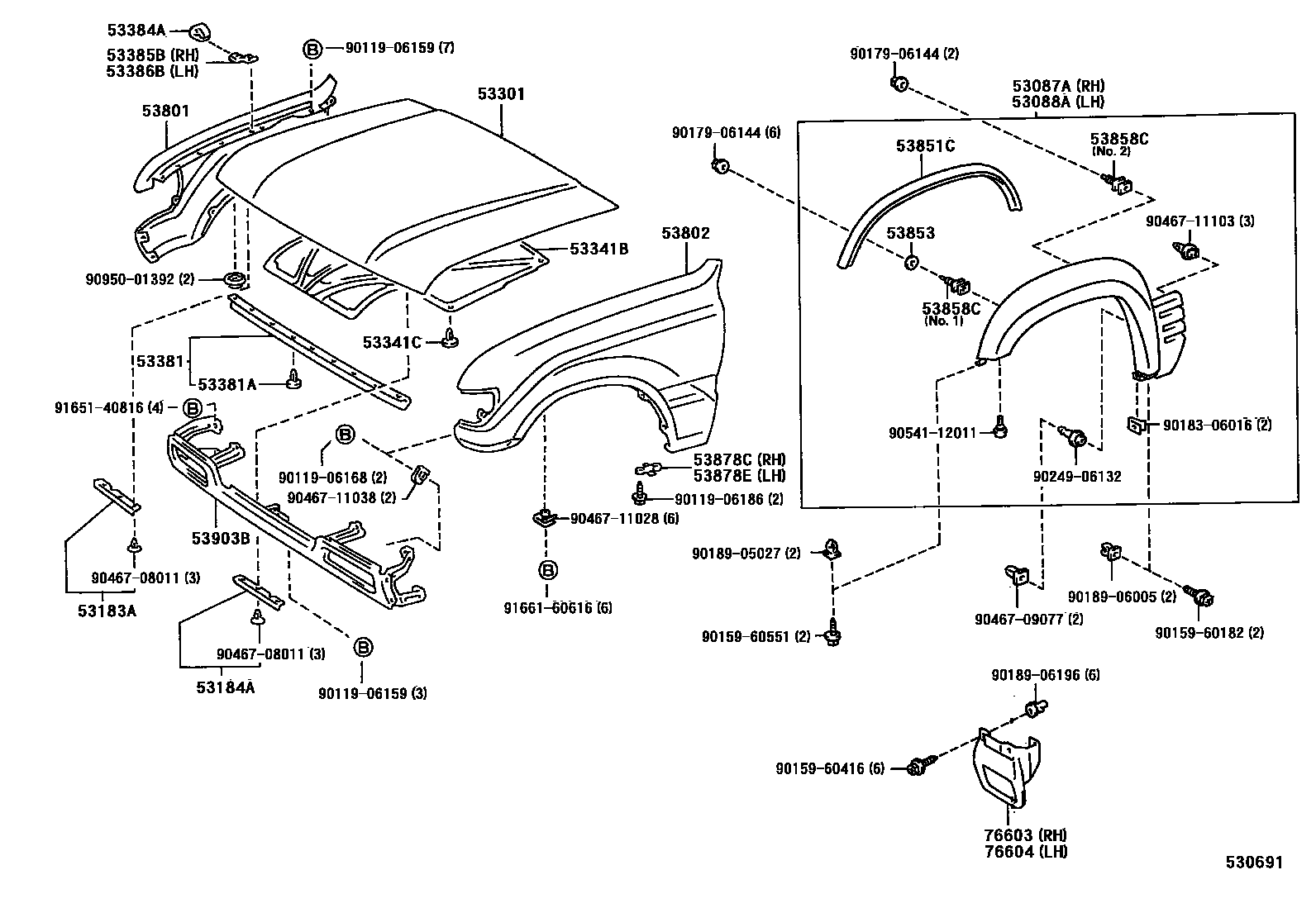

HOOD & FRONT FENDER
53087AEXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH
BLACK,202 ,6M1
BEIGE,045 ,1B1 ,4M9
53088AEXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH
BLACK,202 ,6M1
BEIGE,045 ,1B1 ,4M9
53183ASEAL, HEADLAMP COVER, RH
53184ASEAL, HEADLAMP COVER, LH
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1
DARK GRAY M.,202 ,6M1,RH
BEIGE M.,045 ,1B1 ,4M9,RH
DARK GRAY M.,202 ,6M1,LH
BEIGE M.,045 ,1B1 ,4M9,LH
53853PAD, FRONT WHEEL OPENING EXTENSION, NO.3
53858CBOLT, WHEEL OPENING
NO.2
NO.1
53878CSPACER, FRONT FENDER
53878ESPACER, FRONT FENDER
53903BPANEL SUB-ASSY, FRONT END
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
BLACK,202 ,6M1
BEIGE,045 ,1B1 ,4M9
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
BLACK,202 ,6M1
BEIGE,045 ,1B1 ,4M9
9011906159
main90119-06159
9011906168
main90119-06168
9011906186
main90119-06186
9015960182
main90159-60182
9015960416
main90159-60416
9015960551
main90159-60551
9017906144
main90179-06144
9018306016
main90183-06016
9018905027
main90189-05027
9018906005
main90189-06005
9018906196
main90189-06196
9024906132
main90249-06132
9046708011
main90467-08011
9046709077
main90467-09077
9046711028
main90467-11028
9046711038
main90467-11038
9046711103
main90467-11103
9054112011
main90541-12011
9095001392
main90950-01392
9165140816
main91651-40816
9166160616
main91661-60616
43 parts on this diagram · 1 diagram in section
