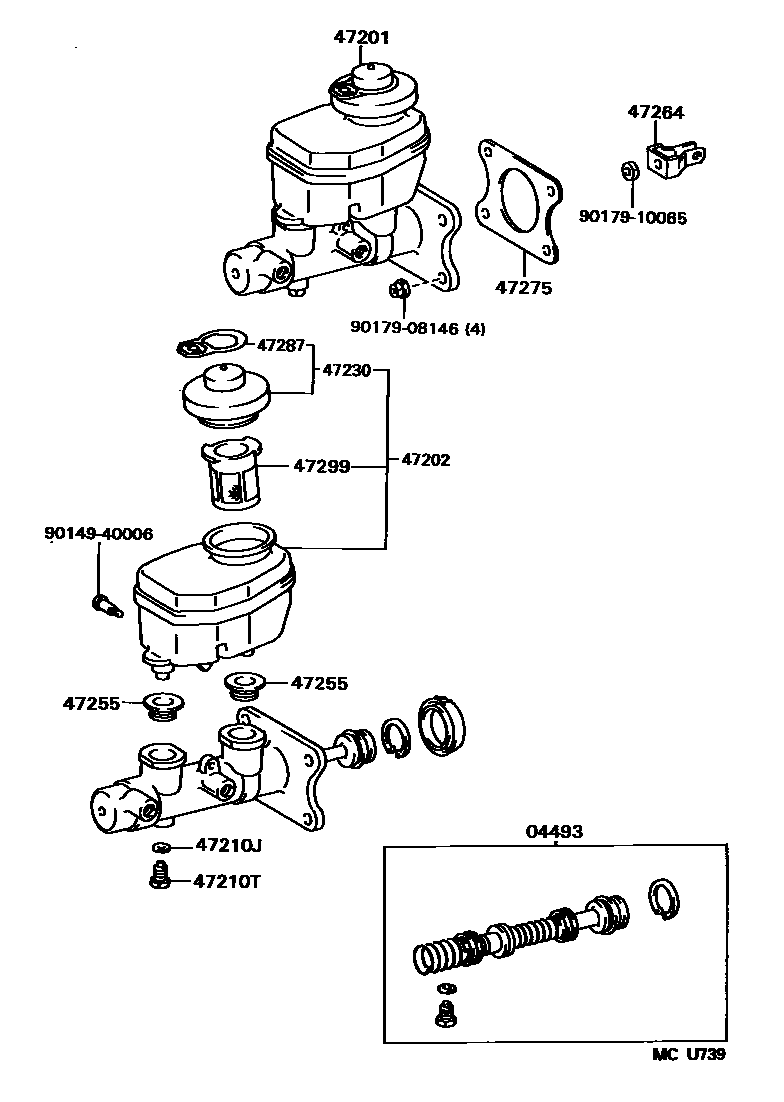

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-3D010iFZJ80199511-199801

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60551iFZJ80199511-199801

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-60070iFZJ80199511-199801

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iFZJ80199511-199801

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iFZJ80199511-199801

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-60020iFZJ80199511-199801

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iFZJ80199511-199801

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iFZJ80199511-199801

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iFZJ80199511-199801

47287LABEL, BRAKE FLUID INFORMATION

main47287-20020iFZJ80199511-199801

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iFZJ80199511-199801

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 1 diagram in section
