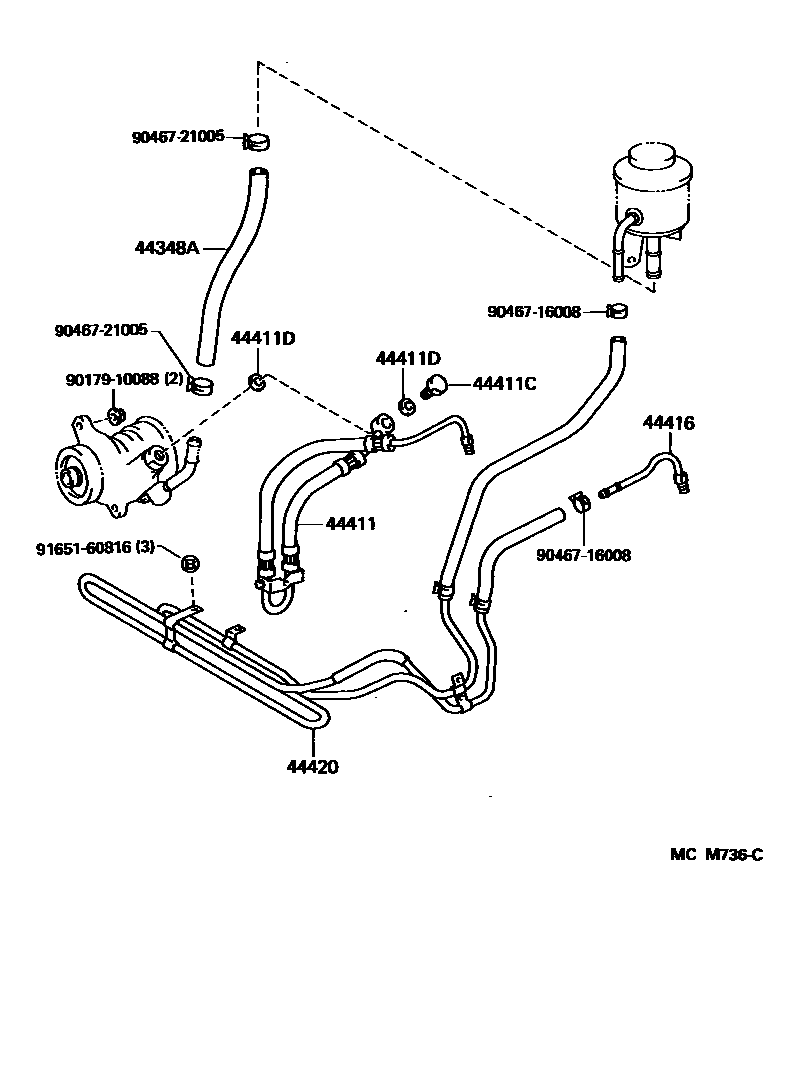

POWER STEERING TUBE

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60170iFZJ80199511-199801

44411HOSE, PRESSURE FEED

main44411-60430iFZJ80199511-199801

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16027iFZJ80199511-199801

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16168×2iFZJ80199511-199801

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60310iFZJ80199511-199704

main44416-60311iFZJ80199704-199801

44420COOLER ASSY, OIL

main44420-60220iFZJ80199511-199704

main44420-60221iFZJ80199704-199801

9017910088

main90179-10088

9046716008

main90467-16008

9046721005

main90467-21005

9165160816

main91651-60816

10 parts on this diagram · 1 diagram in section
