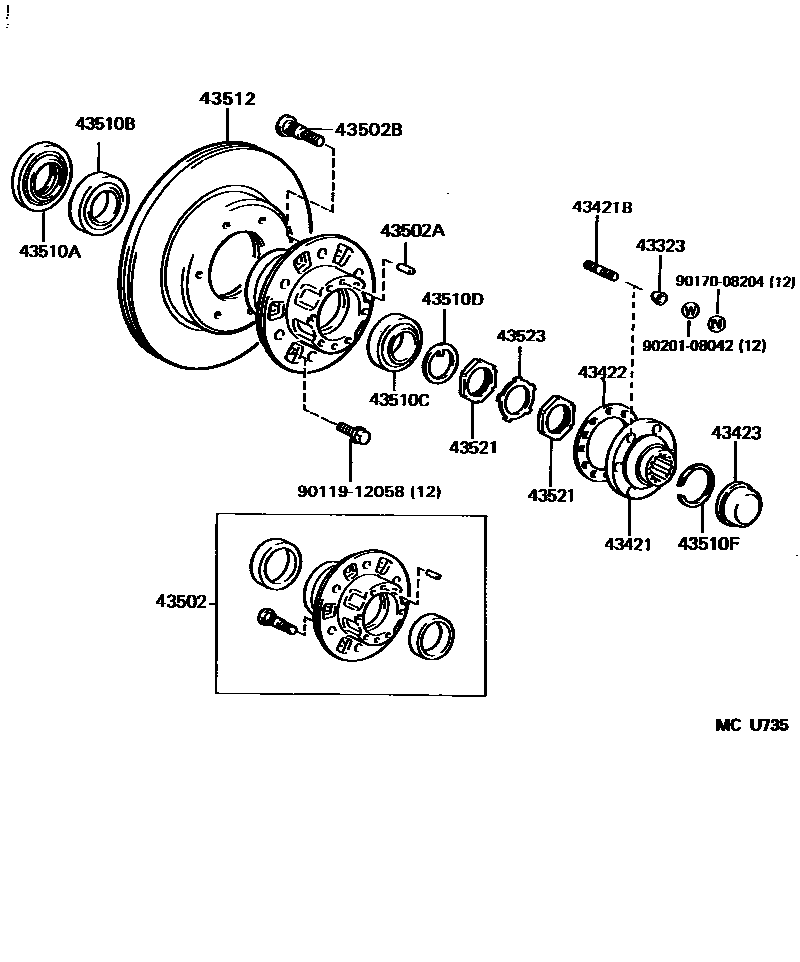

FRONT AXLE HUB

43323WASHER, CONE (FOR FRONT AXLE SHAFT)

main42323-60010×12iFZJ80199511-199801

43421FLANGE, FRONT AXLE OUTER SHAFT

main43421-60040×2iFZJ80199511-199801

43421BBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)

main90116-08325×12iFZJ80199511-199801

43422GASKET, FRONT AXLE OUTER SHAFT FLANGE

main43422-60060×2iFZJ80199511-199801

43423CAP, FRONT AXLE OUTER SHAFT FLANGE

main43423-35010×2iFZJ80199511-199801

43502HUB SUB-ASSY, FRONT AXLE

main43502-69045×2iFZJ80199511-199801

43502APIN, STRAIGHT (FOR FRONT AXLE HUB)

main90250-07057×4iFZJ80199511-199801

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02070×12iFZJ80199511-199801

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-62001×2iFZJ80199511-199801

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90080-36064×2iFZJ80199511-199801

TIMKEN

main90368-49084×2iFZJ80199511-199801

KOYO

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90080-36067×2iFZJ80199511-199801

TIMKEN

main90368-45087×2iFZJ80199511-199801

KOYO

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-42030×2iFZJ80199511-199801

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-31001×2iFZJ80199511-199801

T=2.5

43512DISC, FRONT

main43512-60090×2iFZJ80199511-199801

43521NUT, FRONT WHEEL ADJUSTING

main43521-60011×4iFZJ80199511-199801

43523WASHER, FRONT WHEEL ADJUSTING LOCK

main90215-42025×2iFZJ80199511-199801

9011912058

main90119-12058

9017008204

main90170-08204

9020108042

main90201-08042

19 parts on this diagram · 1 diagram in section
