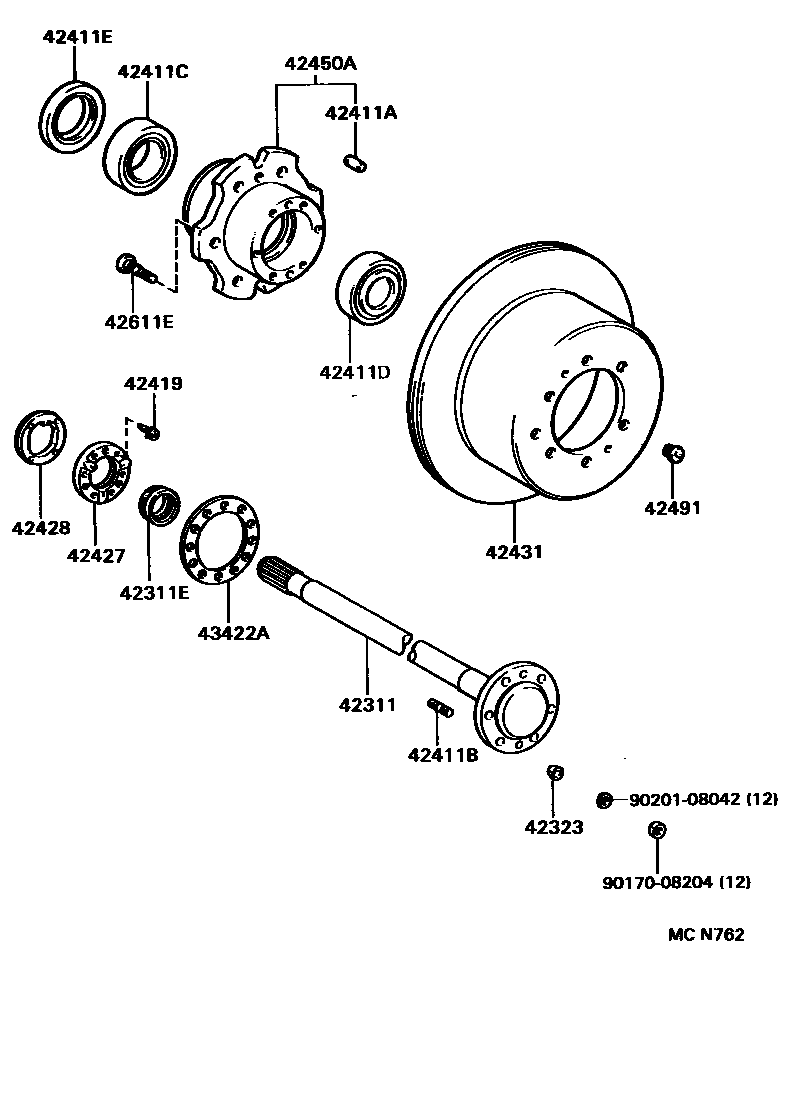

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42311-60100iFZJ80199511-199801

RH

main42311-60110iFZJ80199511-199801

W(*DL),RH

main42312-60090iFZJ80199511-199801

LH

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001×2iFZJ80199511-199801

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-60010×12iFZJ80199511-199801

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-07057×2iFZJ80199511-199801

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-08325×12iFZJ80199511-199801

42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

main90080-36064×2iFZJ80199511-199801

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90080-36067×2iFZJ80199511-199801

42411ESEAL, OIL (FOR REAR AXLE HUB)

main90311-62002×2iFZJ80199511-199801

42419SCREW, REAR AXLE BEARING LOCK NUT

main42419-60011×4iFZJ80199511-199801

42427NUT, REAR AXLE BEARING LOCK

main42427-60021×2iFZJ80199511-199801

42428PLATE, REAR AXLE LOCK NUT

main42428-60011×2iFZJ80199511-199801

42431DISC, REAR

main42431-60170×2iFZJ80199511-199801

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-69015×2iFZJ80199511-199801

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iFZJ80199511-199801

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02052×6iFZJ80199511-199801

43422AGASKET, REAR AXLE OUTER SHAFT FLANGE

main43422-60040×2iFZJ80199511-199801

9017008204

main90170-08204

9020108042

main90201-08042

18 parts on this diagram · 1 diagram in section
