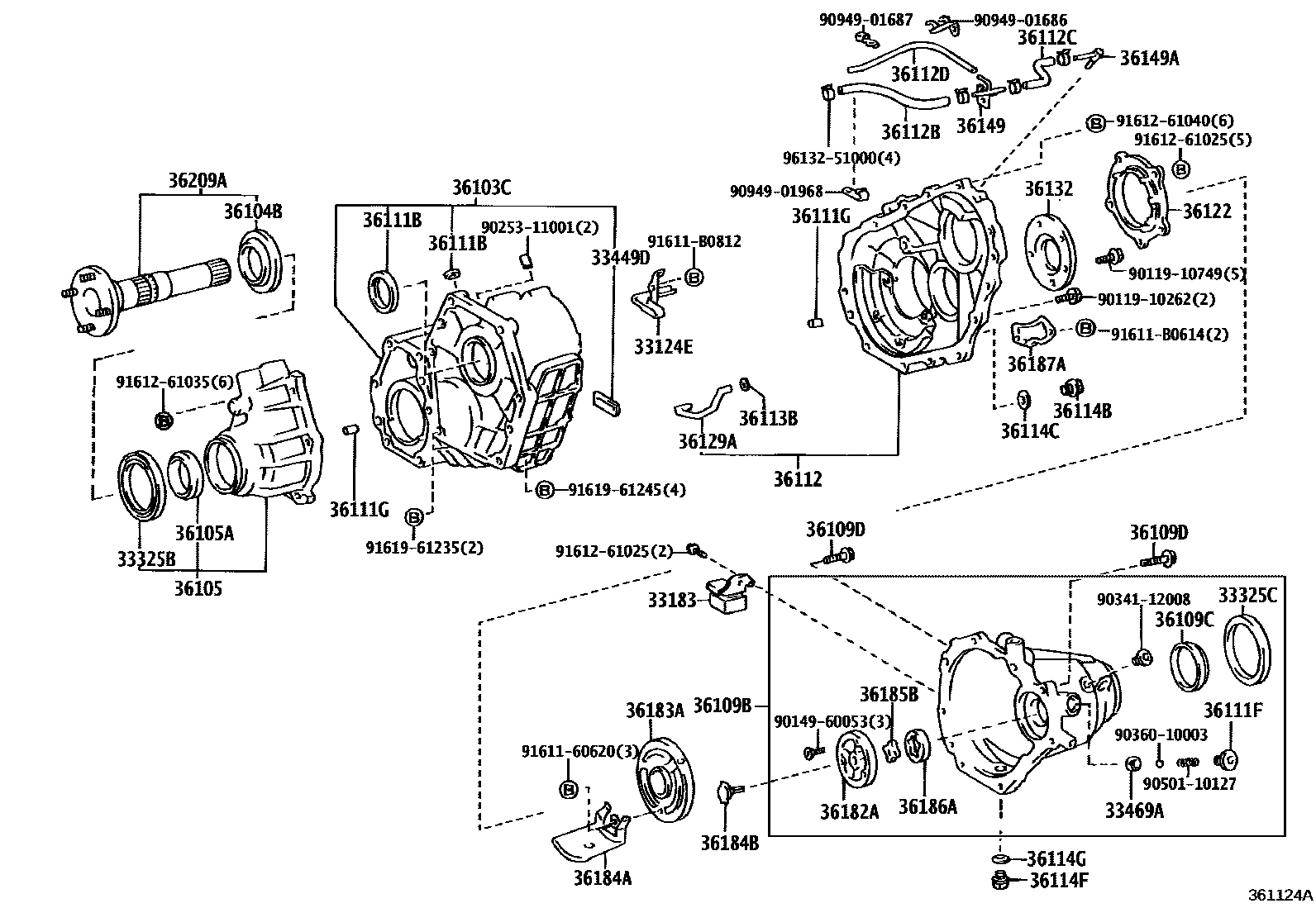

TRANSFER CASE & EXTENSION HOUSING

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33124-60030iFZJ80199511-199801

33183DAMPER, TRANSFER DYNAMIC

main33183-60010iFZJ80199511-199602

main33183-60011iFZJ80199602-199801

33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)

main33325-60050iFZJ80199511-199801

33325CDEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)

main33325-60070iFZJ80199511-199801

33449DMAGNET (FOR TRANSFER CASE)

main33449-60010iFZJ80199511-199801

33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

main33469-60010iFZJ80199511-199801

36103CCASE, TRANSFER, FRONT

main36103-60230iFZJ80199511-199801

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-60040iFZJ80199511-199801

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-60020iFZJ80199511-199801

36105ASEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)

main90311-50014iFZJ80199511-199801

36109BHOUSING SUB-ASSY, TRANSFER EXTENSION, REAR

main36109-60031iFZJ80199511-199801

36109CSEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)

main90311-58008iFZJ80199511-199801

36109DBOLT (FOR TRANSFER EXTENSION REAR HOUSING)

main90119-10180×4iFZJ80199511-199801

*10-1.25PX75-30

main90119-10311iFZJ80199511-199801

*10-1.25PX97-30

main90119-10390×4iFZJ80199511-199801

*10-1.25PX35-30

36111BSEAL, OIL (FOR TRANSFER CASE)

main90310-16001iFZJ80199511-199801

LEVER SIDE

main90311-48016iFZJ80199511-199605

SHAFT SIDE

main90311-48018iFZJ80199605-199801

SHAFT SIDE

36111FPLUG (FOR TRANSFER CASE)

main90341-18039iFZJ80199511-199801

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-12002×6iFZJ80199511-199801

L=16,OD=12

36112CASE, TRANSFER, REAR

main36104-60030iFZJ80199511-199801

36112BHOSE, NO.1 (FOR TRANSFER REAR CASE)

main90445-10075iFZJ80199511-199801

36112CHOSE, NO.2 (FOR TRANSFER REAR CASE)

main90445-11134iFZJ80199511-199801

36112DHOSE, NO.3 (FOR TRANSFER REAR CASE)

main90445-08277iFZJ80199511-199801

36113BRING, O (FOR TRANSFER CASE PLUG)

main90301-09015iFZJ80199511-199801

ID=9.5

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iFZJ80199511-199801

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iFZJ80199511-199801

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18057iFZJ80199511-199801

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main90430-18008iFZJ80199511-199801

36122COVER, TRANSFER CASE, NO.2

main36122-36010iFZJ80199511-199801

36129ATUBE, TRANSFER OIL

main36129-60040iFZJ80199511-199801

36132RETAINER, OUTPUT SHAFT BEARING, REAR NO.1

main36132-60050iFZJ80199511-199801

36149PIPE, TRANSFER BREATHER

main36149-60010iFZJ80199511-199801

36149APIPE, TRANSFER BREATHER, NO.2

main36149-60020iFZJ80199511-199801

36182ACOVER, TRANSFER OIL PUMP

main36182-60011iFZJ80199511-199801

36183APLATE, TRANSFER OIL PUMP

main36183-60012iFZJ80199511-199801

36184ASEPARATOR, TRANSFER OIL

main36184-60050iFZJ80199511-199801

36184BSHAFT, TRANSFER OIL PUMP DRIVE

main36184-60010iFZJ80199511-199801

36185BROTOR, TRANSFER OIL PUMP DRIVE

main36185-60010iFZJ80199511-199801

36186AROTOR, TRANSFER OIL PUMP DRIVEN

main36186-60020iFZJ80199511-199801

36187ASTRAINR, TRANSFER OIL, NO.1

main36187-60070iFZJ80199511-199801

36209ASHAFT, TRANSFER OUTPUT, FRONT

main36209-60020iFZJ80199511-199801

9011910262

main90119-10262

9011910749

main90119-10749

9014960053

main90149-60053

9025311001

main90253-11001

9034112008

main90341-12008

9036010003

main90360-10003

9050110127

main90501-10127

9094901686

main90949-01686

9094901687

main90949-01687

9094901968

main90949-01968

9161160620

main91611-60620

91611B0614

main91611-B0614

91611B0812

main91611-B0812

9161261025

main91612-61025

9161261035

main91612-61035

9161261040

main91612-61040

9161961235

main91619-61235

9161961245

main91619-61245

9613251000

main96132-51000

57 parts on this diagram · 1 diagram in section
