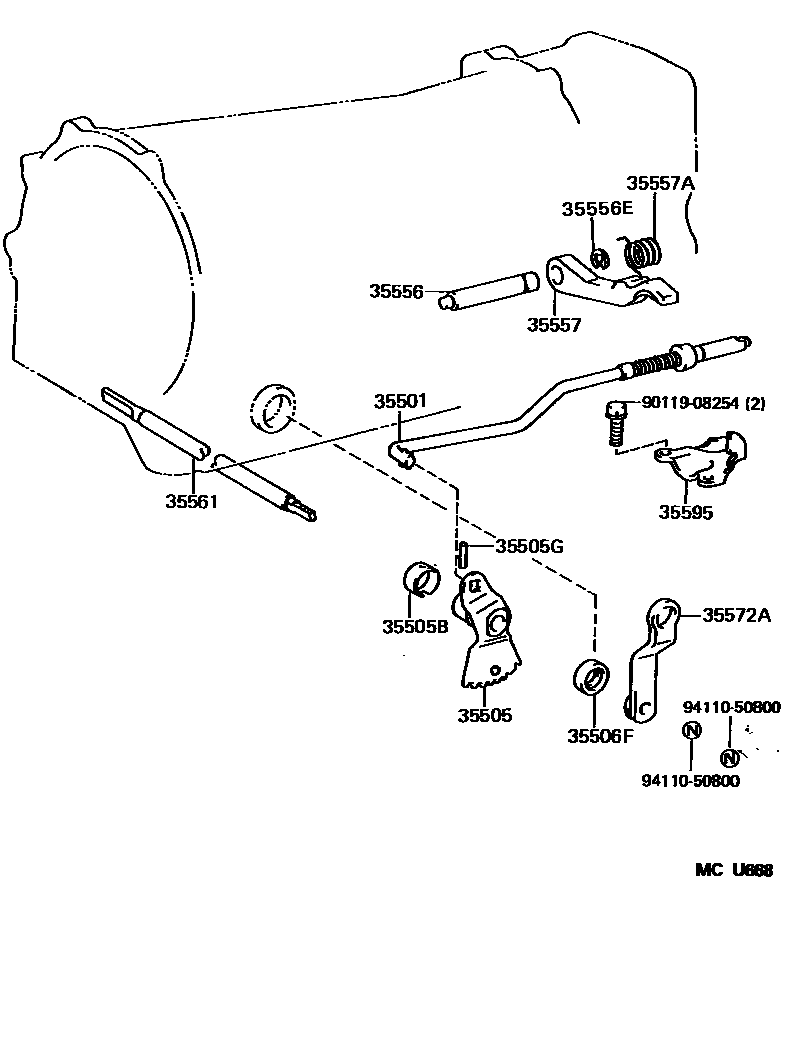

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-60010iFZJ80199511-199801

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30020iFZJ80199511-199801

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iFZJ80199511-199801

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iFZJ80199511-199801

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iFZJ80199511-199801

35556SHAFT, PARKING LOCK PAWL

main35556-30020iFZJ80199511-199801

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iFZJ80199511-199801

35557PAWL, PARKING LOCK

main35557-60020iFZJ80199511-199801

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iFZJ80199511-199801

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iFZJ80199511-199801

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-60060iFZJ80199511-199801

35595BRACKET, PARKING LOCK PAWL

main35595-60010iFZJ80199511-199801

9011908254

main90119-08254

9411050800

main94110-50800

14 parts on this diagram · 2 diagrams in section
