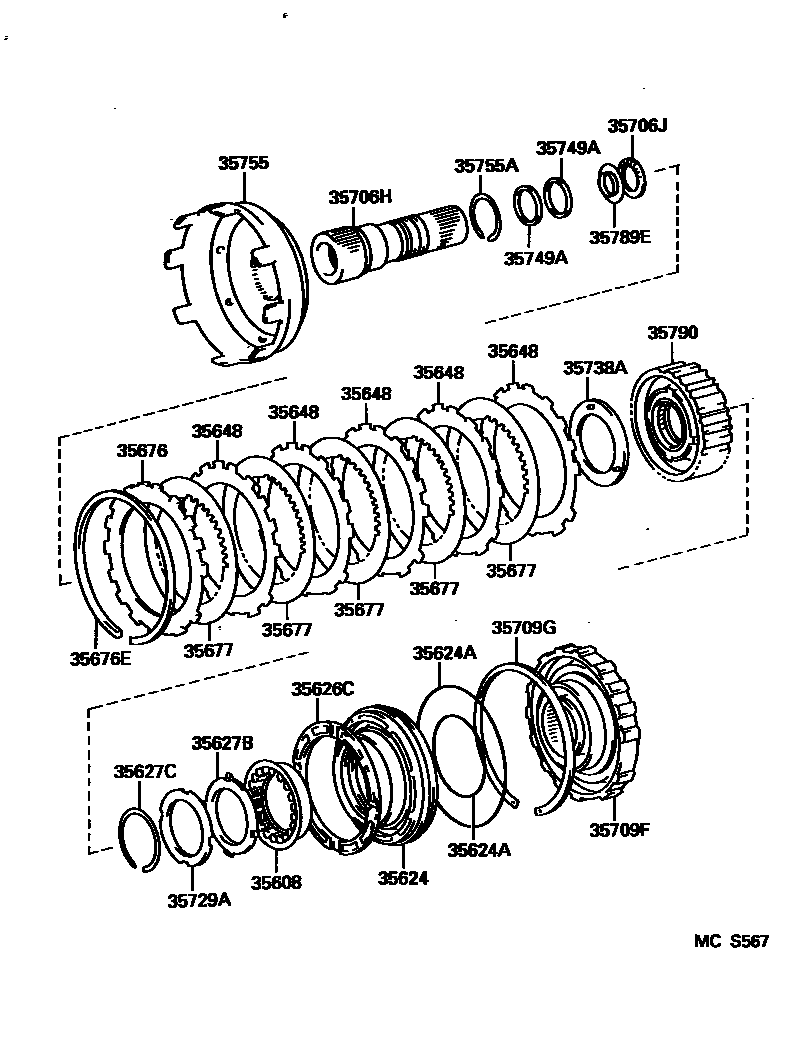

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-30010iFZJ80199511-199801

35624PISTON, 2ND BRAKE

main35624-30010iFZJ80199511-199801

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-85001iFZJ80199511-199801

INNER

main90301-99038iFZJ80199511-199801

OUTER

35626CSLEEVE, 2ND BRAKE PISTON

main35626-30030iFZJ80199511-199801

35627BSEAT, 2ND BRAKE PISTON RETURN SPRING

main35627-30010iFZJ80199511-199801

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-54001iFZJ80199511-199801

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35647-30020×4iFZJ80199511-199801

T=2.5

main35647-30030iFZJ80199511-199801

T=1.8

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020iFZJ80199511-199801

T=3.0

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90521-99032iFZJ80199511-199801

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-60010×5iFZJ80199511-199801

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-60040iFZJ80199511-199801

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-27009iFZJ80199511-199801

35709FDRUM SUB-ASSY, 2ND BRAKE

main35709-30061iFZJ80199511-199801

35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)

main90521-99044iFZJ80199511-199801

35729AWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-30010iFZJ80199511-199801

35738AWASHER, 1 WAY CLUTCH THRUST, NO.1

main35738-30040iFZJ80199511-199801

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-30010×2iFZJ80199511-199801

35755DRUM, SUN GEAR INPUT

main35755-50010iFZJ80199511-199801

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-46002iFZJ80199511-199801

ID=46.0,T=1.2,T=1.2,ID=46.0,RR

main90520-49001iFZJ80199511-199801

ID=49.0,WD=2.3,WD=2.3,ID=49.0,FR

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-30240iFZJ80199511-199801

35790CLUTCH ASSY, 1 WAY

main35790-30060iFZJ80199511-199801

21 parts on this diagram · 1 diagram in section
