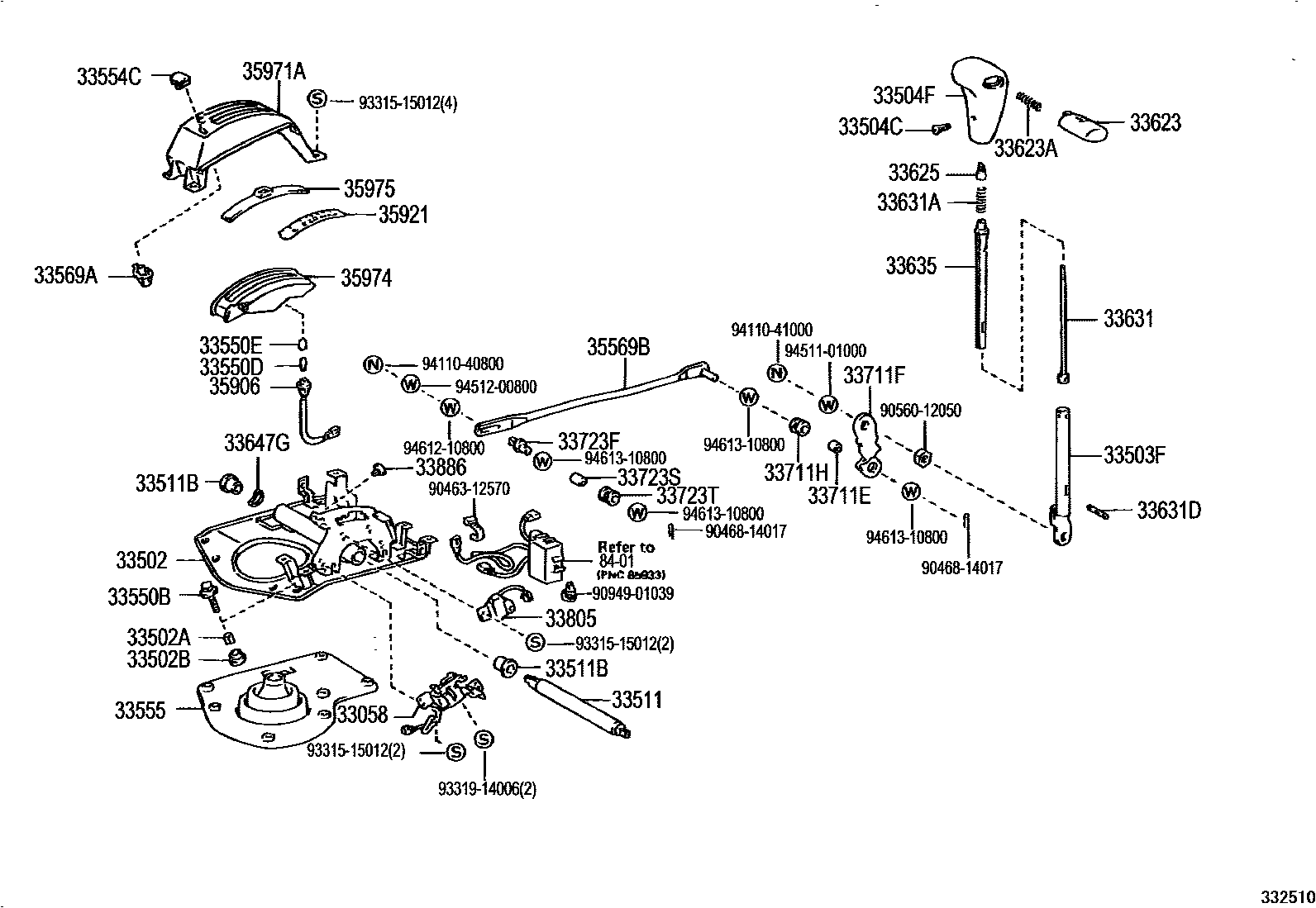

SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=8.8
33502BGROMMET (FOR SHIFT LEVER PLATE)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM4#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511BBUSH (FOR CONTROL SHAFT)
33550BBOLT, W/WASHER (FOR FLOOR SHIFT)
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
BLACK,TRIM4#
33555BOOT, SHIFT LEVER
33569AGUIDE, SHIFT LOCK RELEASE BUTTON
33623BUTTON, SHIFT LEVER KNOB
BLACK,TRIM4#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33635GUIDE, WIRE (FOR SHIFT LEVER)
33647GWASHER, WAVE (FOR CONTROL LINK SHAFT)
33711EBUSH (FOR CONTROL SHAFT LEVER)
33711FLEVER, CONTROL SHAFT (FOR FLOOR SHIFT)
33711HGROMMET (FOR CONTROL SHAFT LEVER)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723SBUSH (FOR CONNECTING ROD SWIVEL)
33723TGROMMET (FOR CONNECTING ROD SWIVEL)
33805PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT)
33886STOPPER, SHIFT LEVER
35569BROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
9046312570
main90463-12570
9046814017
main90468-14017
9056012050
main90560-12050
9094901039
main90949-01039
9331515012
main93315-15012
9331914006
main93319-14006
9411040800
main94110-40800
9411041000
main94110-41000
9451101000
main94511-01000
9451200800
main94512-00800
9461210800
main94612-10800
9461310800
main94613-10800
50 parts on this diagram · 1 diagram in section
