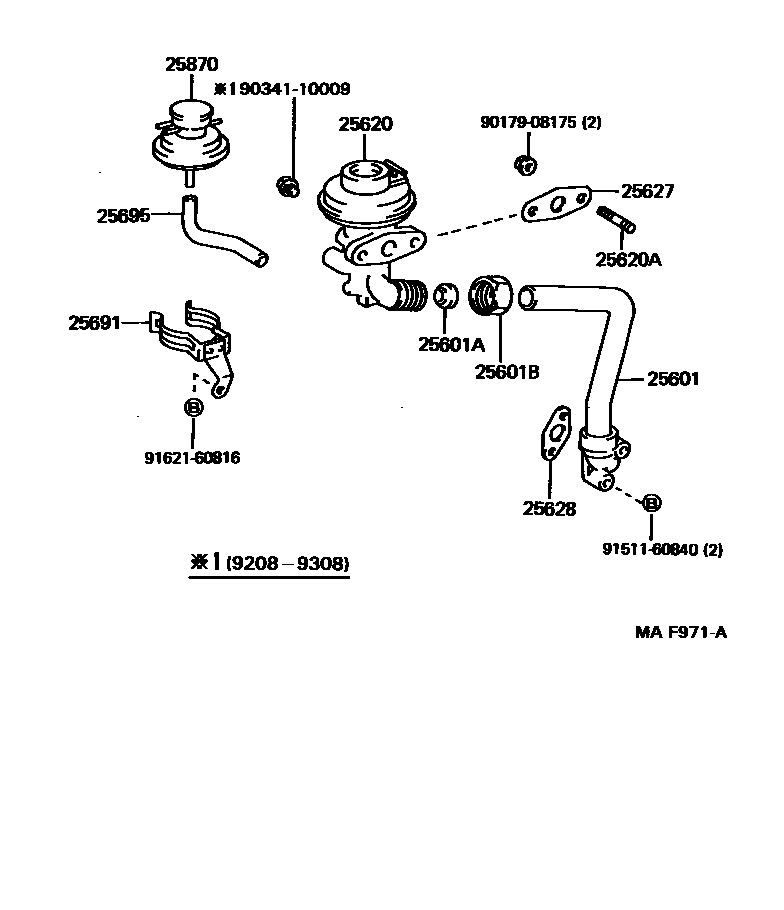

EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-66010i1FZFE..FZJ80199511-199801

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-18002i1FZFE..FZJ80199511-199801

25601BNUT, UNION, EGR PIPE, NO.1

main90402-26003i1FZFE..FZJ80199511-199801

25620VALVE ASSY, EGR

main25620-66011i1FZFE..FZJ80199511-199801

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08348i1FZFE..FZJ80199511-199801

25627GASKET, EGR VALVE

main25627-66010i1FZFE..FZJ80199511-199801

25628GASKET, EGR INLET

main25628-66010i1FZFE..FZJ80199511-199801

25691BRACKET, EGR VACUUM MODULATOR

main25691-66010i1FZFE..FZJ80199511-199801

25695HOSE, EGR VACUUM MODULATOR

main25695-66010i1FZFE..FZJ80199511-199801

25870VALVE ASSY, EGR VACUUM MODULATOR

main25870-66010i1FZFE..FZJ80199511-199801

sub25870-66011

9017908175

main90179-08175

9034110009

main90341-10009

9151160840

main91511-60840

9162160816

main91621-60816

14 parts on this diagram · 1 diagram in section
