STARTER

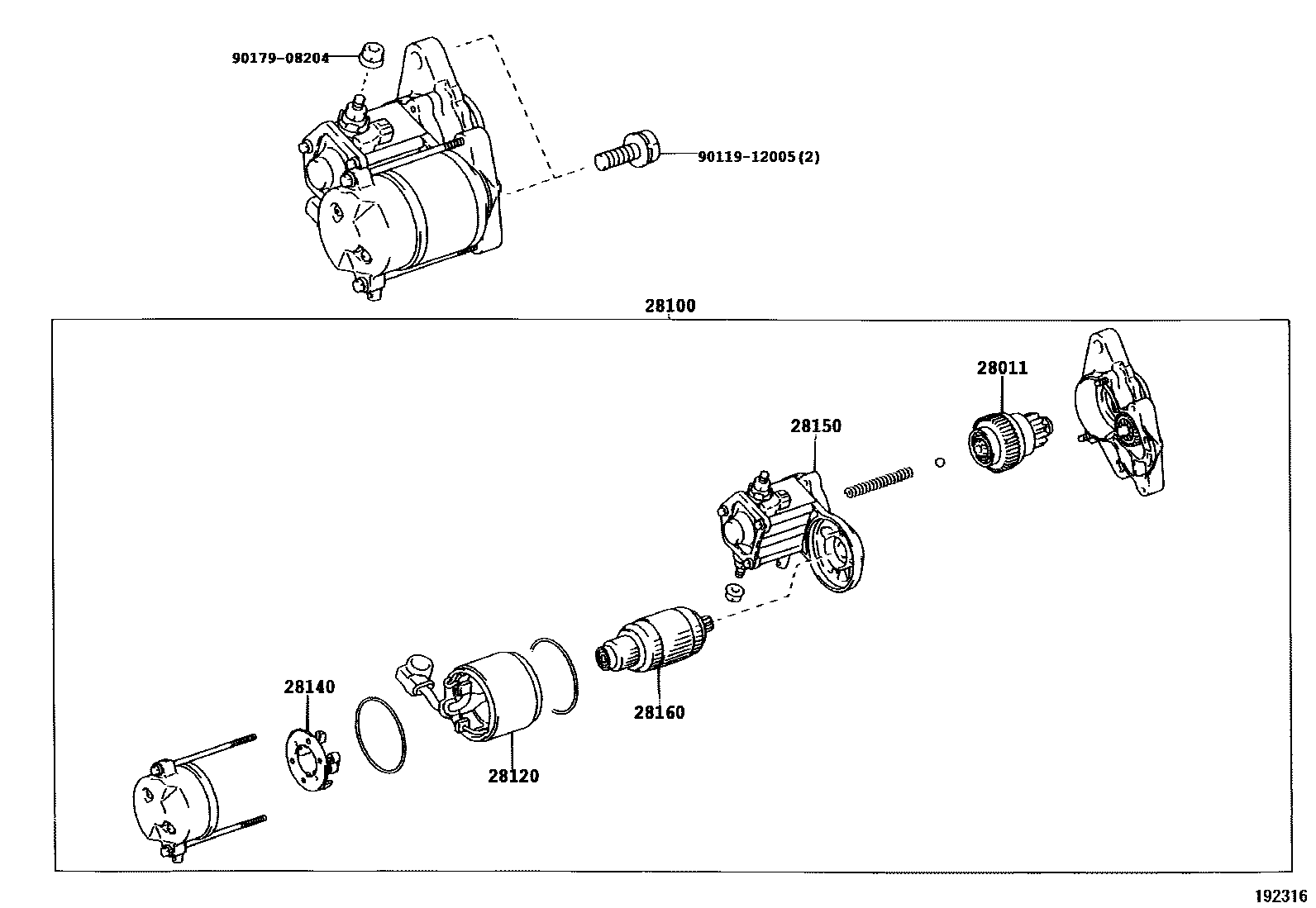

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-66020i199511-199801

W/O COLD SPEC

main28011-66060i199511-199801

28100STARTER ASSY

main28100-66040i199511-199801

12V 1.4KW,W/O COLD SPEC

main28100-66060i199511-199801

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-54380i199511-199801

main28120-66040i199511-199801

W/O COLD SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i199511-199801

main28140-76070i199511-199801

W/O COLD SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-66041i199511-199801

W/O COLD SPEC

main28150-66060i199511-199801

28160ARMATURE ASSY, STARTER

main28160-74070i199511-199801

W/O COLD SPEC

main28160-75120i199511-199801

9011912005

main90119-12005

9017908204

main90179-08204

8 parts on this diagram · 2 diagrams in section
