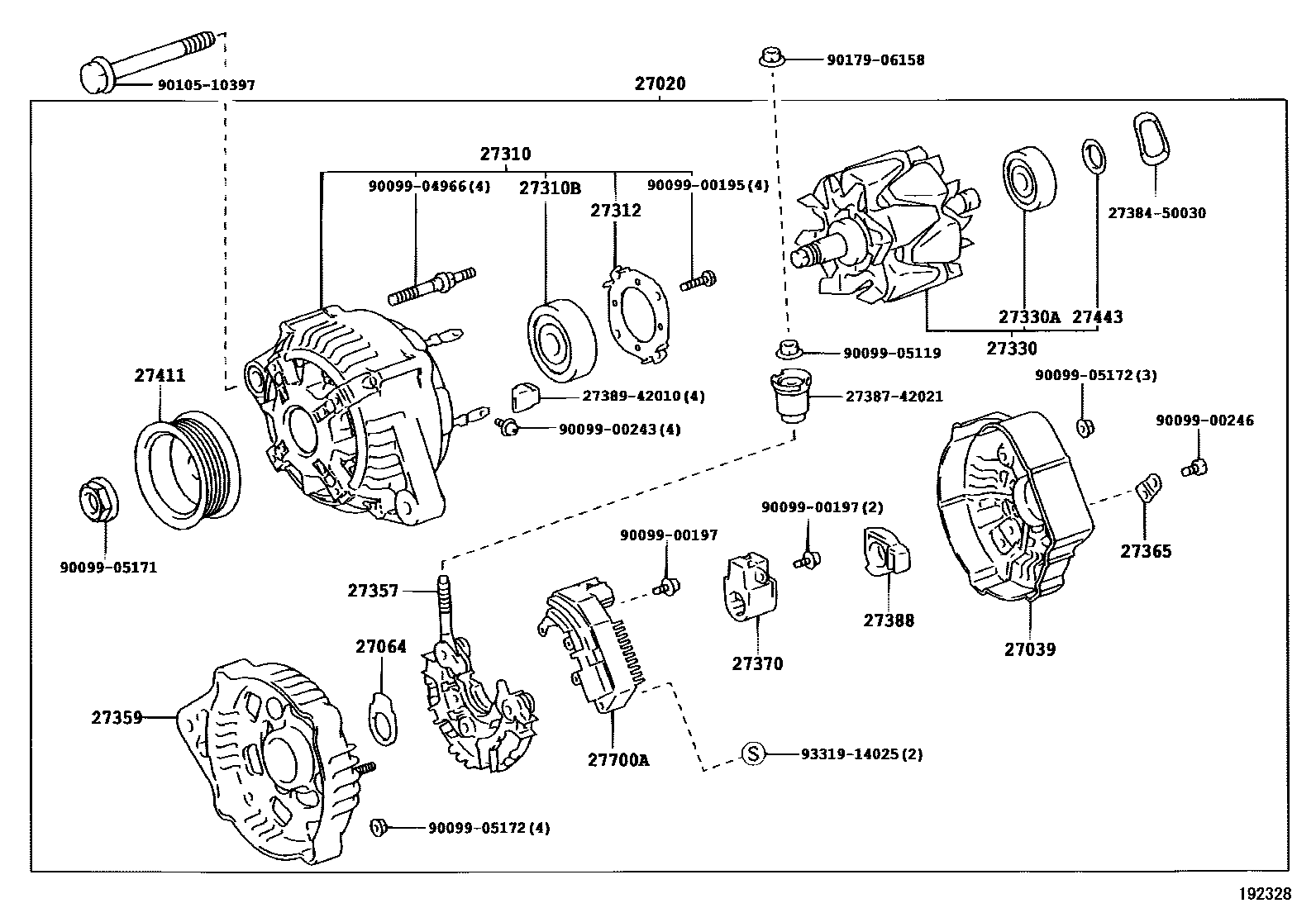

ALTERNATOR
27020ALTERNATOR ASSY
12V 80A
27039COVER, ALTERNATOR REAR END
sub27039-70470
27064SEAL, ALTERNATOR PLATE
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
sub27330-16390
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27365PLATE, TERMINAL
27370HOLDER ASSY, ALTERNATOR BRUSH
27388COVER, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
sub27700-75020
2738450030WASHER
main27384-50030
2738742021INSULATOR, TERMINAL
main27387-42021
2738942010INSULATOR, TERMINAL
main27389-42010
9009900195
main90099-00195
9009900197
main90099-00197
9009900243
main90099-00243
9009900246
main90099-00246
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9010510397
main90105-10397
9017906158
main90179-06158
9331914025
main93319-14025
30 parts on this diagram · 1 diagram in section
