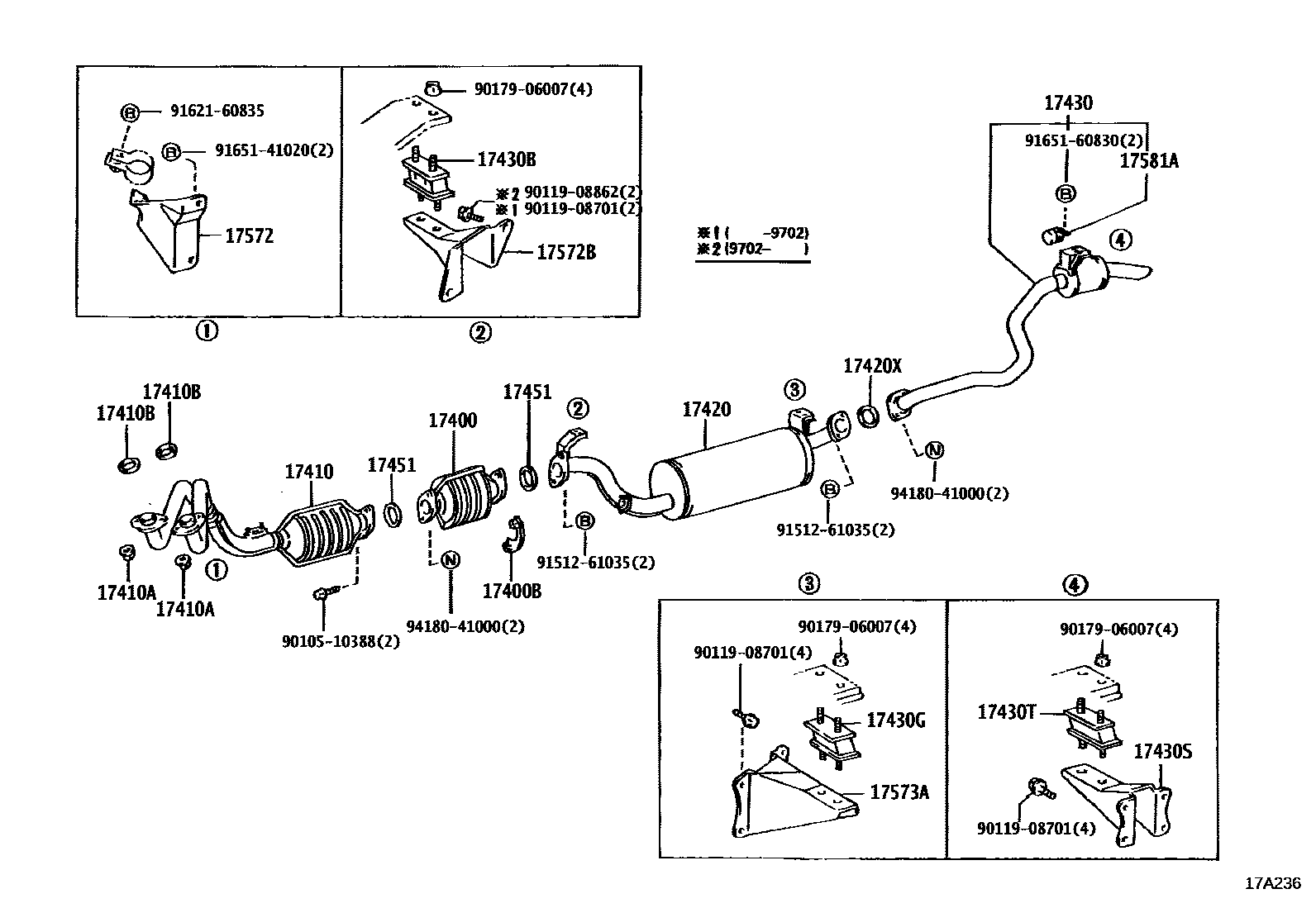

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17400BRETAINER, EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)
17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
FRONT
REAR
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17581ADAMPER, EXHAUST PIPE
9010510388
main90105-10388
9011908701
main90119-08701
9011908862
main90119-08862
9017906007
main90179-06007
9151261035
main91512-61035
9162160835
main91621-60835
9165141020
main91651-41020
9165160830
main91651-60830
9418041000
main94180-41000
26 parts on this diagram · 1 diagram in section
