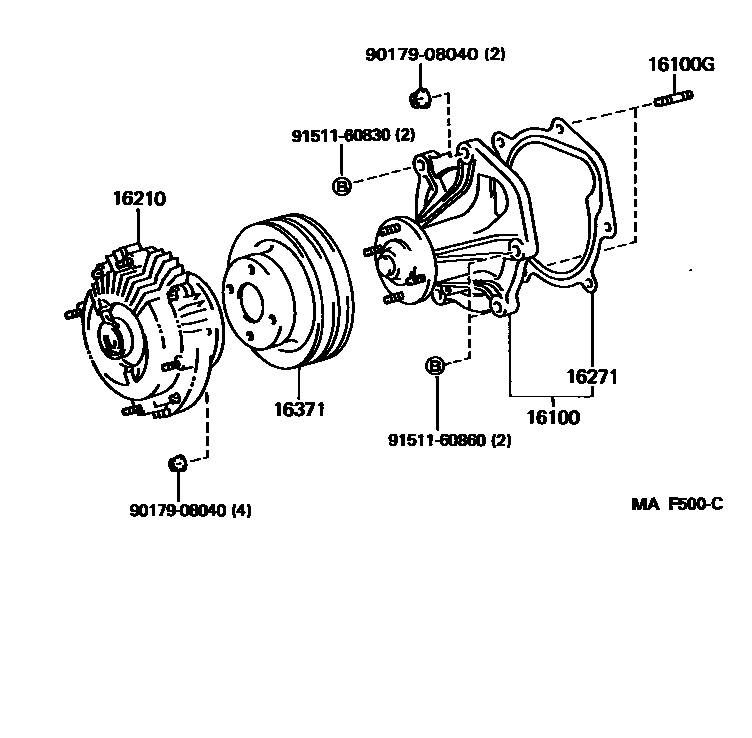

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-69325i1FZFE..FZJ80199511-199801

16100GBOLT, STUD(FOR WATER PUMP SET)

main92122-60860×2i1FZFE..FZJ80199511-199801

16210COUPLING ASSY, FLUID

main16210-66010i1FZFE..FZJ80199511-199801

16271GASKET, WATER PUMP

main16271-66020i1FZFE..FZJ80199511-199801

16371PULLEY, FAN

main16371-66020i1FZFE..FZJ80199511-199801

9017908040

main90179-08040

9151160830

main91511-60830

9151160860

main91511-60860

8 parts on this diagram · 1 diagram in section
