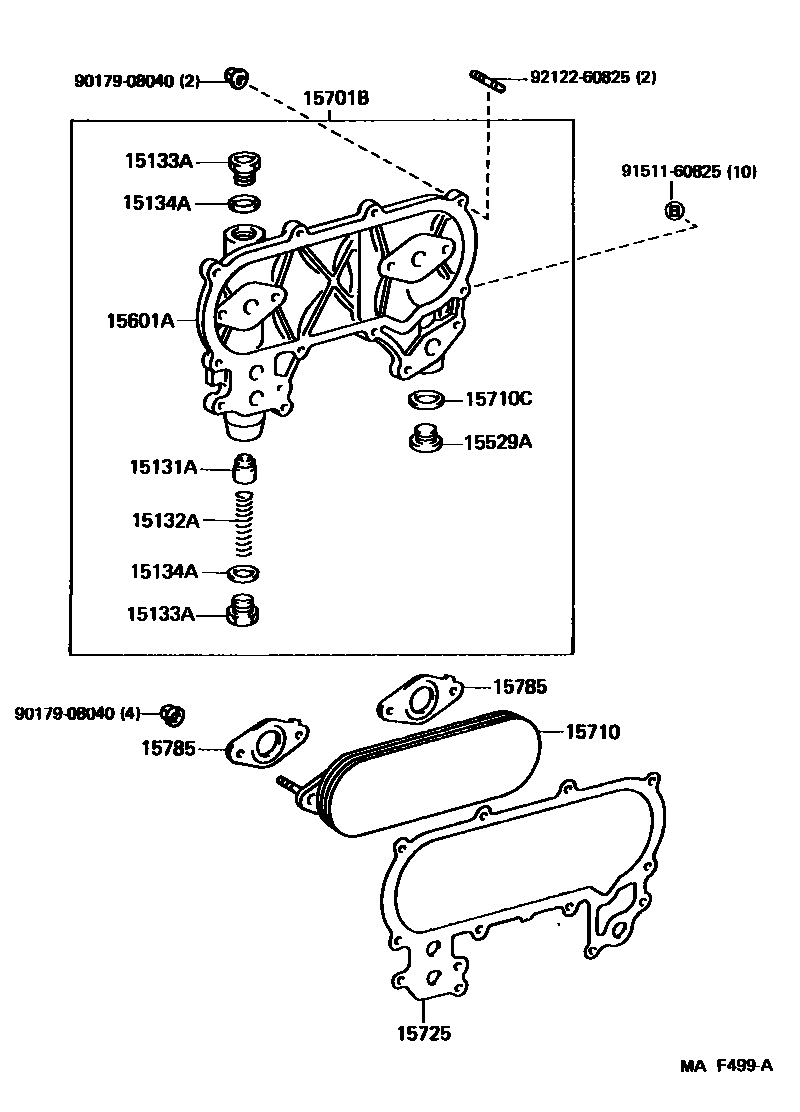

ENGINE OIL COOLER

15131AVALVE, OIL COOLER RELIEF

main15131-64020i1FZFE..FZJ80199511-199801

15132ASPRING, OIL COOLER RELIEF VALVE

main15132-50010i1FZFE..FZJ80199511-199801

15133APLUG, OIL COOLER RELIEF VALVE

main15133-20010×2i1FZFE..FZJ80199511-199801

15134AGASKET, OIL COOLER RELIEF VALVE

main15134-20010×2i1FZFE..FZJ80199511-199801

15529APLUG

main90341-20002i1FZFE..FZJ80199511-199801

15601ACOVER, OIL COOLER

main15721-66010i1FZFE..FZJ80199511-199801

15701BCOVER SUB-ASSY, OIL COOLER

main15701-66010i1FZFE..FZJ80199511-199801

15710COOLER ASSY, OIL

main15710-54030i1FZFE..FZJ80199511-199801

15710CGASKET(FOR OIL COOLER)

main15134-17010i1FZFE..FZJ80199511-199801

15725GASKET, OIL COOLER COVER

main15725-66010i1FZFE..FZJ80199511-199801

15785GASKET, OIL COOLER

main15785-66010×2i1FZFE..FZJ80199511-199801

9017908040

main90179-08040

9151160825

main91511-60825

9212260825

main92122-60825

14 parts on this diagram · 1 diagram in section
