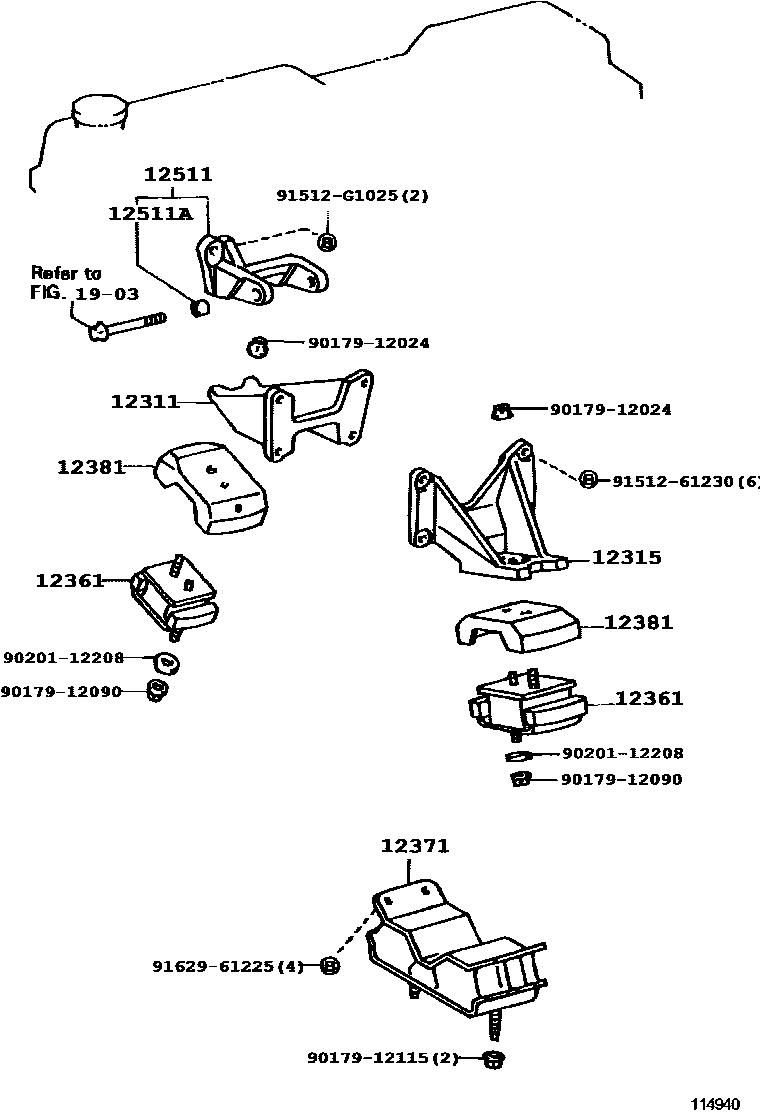

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-66030i1FZFE..FZJ80199511-199801

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-66031i1FZFE..FZJ80199511-199801

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-17011×2i1FZFE..FZJ80199511-199801

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-66030i1FZFE..FZJ80199511-199801

12381STABILIZER, ENGINE MOUNTING

main12381-66010×2i1FZFE..FZJ80199511-199801

12511BRACKET, ALTERNATOR, NO.1

main12511-66010i1FZFE..FZJ80199511-199801

12511ABUSH, ALTERNATOR BRACKET

main90387-10101i1FZFE..FZJ80199511-199801

1903ALTERNATOR

→ Go to FIG 19-03

9017912024

main90179-12024

9017912090

main90179-12090

9017912115

main90179-12115

9020112208

main90201-12208

9151261230

main91512-61230

91512G1025

main91512-G1025

9162961225

main91629-61225

15 parts on this diagram · 1 diagram in section
